Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC105-471FIXED IND 470UH 480MA 1.48OHM SM |
3,475 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 480 mA | 420mA | Unshielded | 1.48Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-560FIXED IND 56UH 1.6A 190 MOHM SMD |
2,023 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 1.6 A | 1.17A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-561FIXED IND 560UH 460MA 1.9OHM SMD |
2,690 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 µH | ±20% | 460 mA | 330mA | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-680FIXED IND 68UH 1.5A 220 MOHM SMD |
2,383 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.5 A | 1.11A | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-681FIXED IND 680UH 450MA 2.25OHM SM |
2,845 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 450 mA | 280mA | Unshielded | 2.25Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-820FIXED IND 82UH 1.4A 250 MOHM SMD |
2,077 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.4 A | 1A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|
|
SC105-821FIXED IND 820UH 430MA 2.55OHM SM |
4,848 |
|
Datasheet |
SC105 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 430 mA | 240mA | Unshielded | 2.55Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.224" (5.70mm) |
|

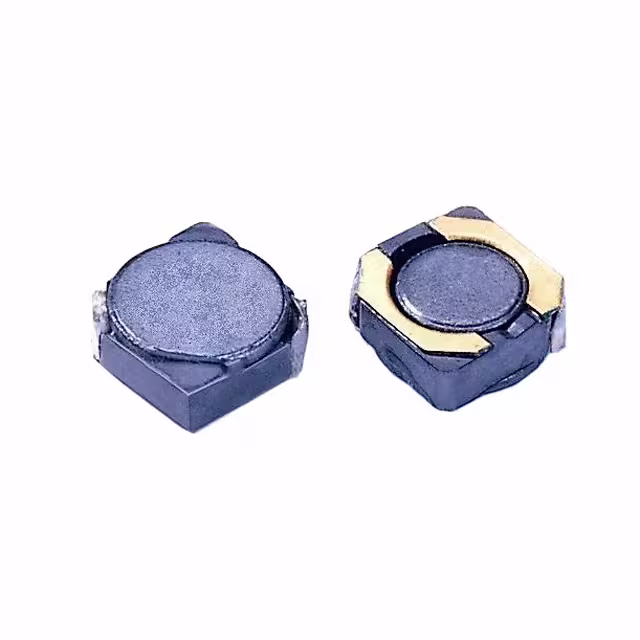

SCRH4D18-120FIXED IND 12UH 1A 210 MOHM SMD |
1,013 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 1 A | 560mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-150FIXED IND 15UH 950MA 240MOHM SMD |
1,519 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 950 mA | 500mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-180FIXED IND 18UH 900MA 338MOHM SMD |
3,556 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±30% | 900 mA | 480mA | Shielded | 338mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-1R0FIXED IND 1UH 3.6A 35 MOHM SMD |
4,224 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 3.6 A | 1.72A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-220FIXED IND 22UH 800MA 397MOHM SMD |
1,452 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 800 mA | 410mA | Shielded | 397mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-270FIXED IND 27UH 720MA 441MOHM SMD |
1,590 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±30% | 720 mA | 350mA | Shielded | 441mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-2R7FIXED IND 2.7UH 2.4A 80 MOHM SMD |
2,593 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 2.4 A | 1.28A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-330FIXED IND 33UH 660MA 694MOHM SMD |
3,197 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±30% | 660 mA | 320mA | Shielded | 694mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-390FIXED IND 39UH 590MA 709MOHM SMD |
3,208 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±30% | 590 mA | 300mA | Shielded | 709mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-3R3FIXED IND 3.3UH 2.1A 85 MOHM SMD |
1,447 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±30% | 2.1 A | 1.04A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-3R9FIXED IND 3.9UH 1.79A 120MOHM SM |
4,612 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±30% | 1.79 A | 880mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-6R8FIXED IND 6.8UH 1.28A 170MOHM SM |
1,722 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.28 A | 760mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-8R2FIXED IND 8.2UH 1.1A 190MOHM SMD |
1,771 |
|
Datasheet |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 1.1 A | 680mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
