Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

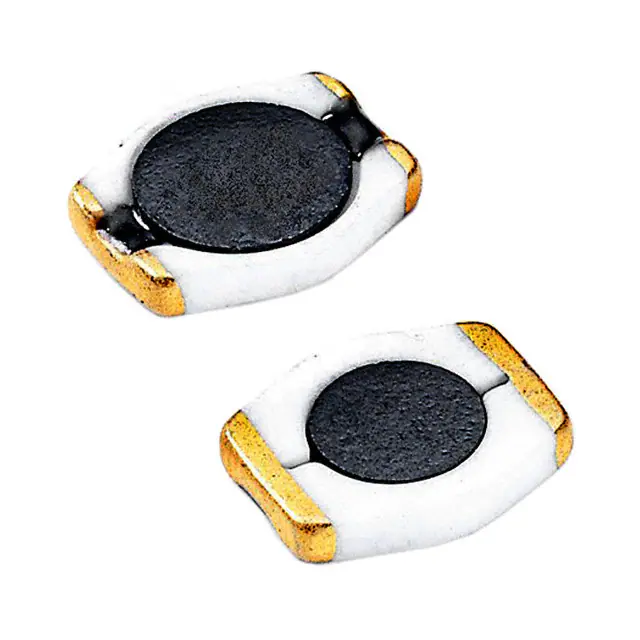

SC2506-330FIXED IND 33UH 680MA 650MOHM SMD |
4,291 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 680 mA | 600mA | Unshielded | 650mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-331FIXED IND 330UH 190MA 7.3OHM SMD |
4,030 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | ±20% | 190 mA | 180mA | Unshielded | 7.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-470FIXED IND 47UH 560MA 880MOHM SMD |
2,276 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 560 mA | 500mA | Unshielded | 880mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-471FIXED IND 470UH 160MA 12 OHM SMD |
2,293 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | ±20% | 160 mA | 140mA | Unshielded | 12Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-4R7FIXED IND 4.7UH 1.6A 145MOHM SMD |
3,636 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 1.6 A | 1.6A | Unshielded | 145mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-680FIXED IND 68UH 480MA 1.3 OHM SMD |
2,303 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 480 mA | 400mA | Unshielded | 1.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-681FIXED IND 680UH 140MA 15.3OHM SM |
3,607 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | ±20% | 140 mA | 120mA | Unshielded | 15.3Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-6R8FIXED IND 6.8UH 1.5A 165MOHM SMD |
2,126 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±20% | 1.5 A | 1.3A | Unshielded | 165mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
SCMS5D18-221FIXED IND 220UH 290MA 4.37OHM SM |
2,808 |
|
Datasheet |
SCMS5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 µH | ±20% | 290 mA | 217mA | Shielded | 4.37Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.075" (1.90mm) |
|
|
SCMS5D18-4R7FIXED IND 4.7UH 1.8A 91 MOHM SMD |
2,666 |
|
Datasheet |
SCMS5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±30% | 1.8 A | 1.54A | Shielded | 91mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.075" (1.90mm) |
|
|
SCMS5D20-2R2FIXED IND 2.2UH 2.37A 47MOHM SMD |
3,904 |
|
Datasheet |
SCMS5D20 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±30% | 2.37 A | 1.87A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.083" (2.10mm) |
|
|
SCMS5D20-3R3FIXED IND 3.3UH 2.2A 60 MOHM SMD |
2,523 |
|
Datasheet |
SCMS5D20 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±30% | 2.2 A | 1.47A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.083" (2.10mm) |
|
|
CDRH127/HPNP-270MCINDUCTOR |
3,902 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.6 A | 4.96A | Shielded | 56.3mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-220MCINDUCTOR |
2,942 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.73 A | 5.6A | Shielded | 48.8mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-271MCINDUCTOR |
2,005 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 1.1 A | 1.64A | Shielded | 533mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-681MCINDUCTOR |
4,200 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 720 mA | 980mA | Shielded | 1.31Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-560MCINDUCTOR |
1,986 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.5 A | 3.36A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-181MCINDUCTOR |
4,330 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.45 A | 1.94A | Shielded | 319mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-470MCINDUCTOR |
2,693 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 3.4A | Shielded | 93.8mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CDRH127/HPNP-3R5NCINDUCTOR |
3,473 |
|
Datasheet |
CDRH127/HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | -20%, +40% | 7.3 A | 15.3A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
