Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

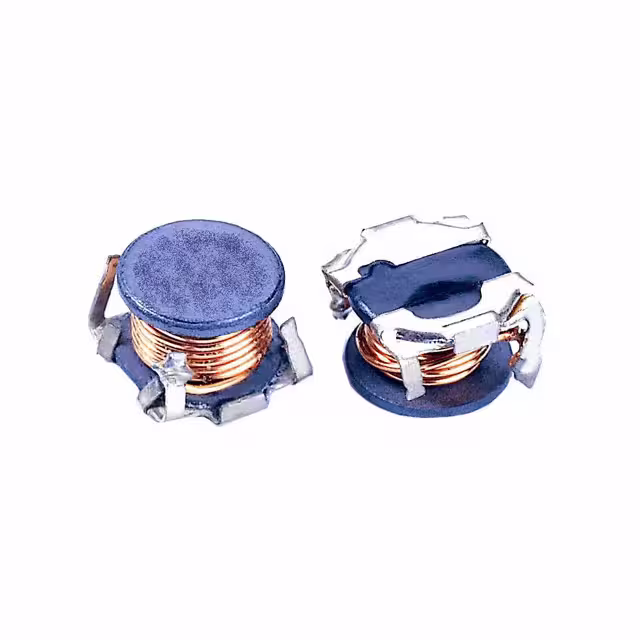

SCH74-180FIXED IND 18UH 2.4A 94 MOHM SMD |
4,226 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±15% | 2.4 A | 1.95A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-181FIXED IND 180UH 660MA 820MOHM SM |
3,622 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±10% | 660 mA | 660mA | Unshielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-220FIXED IND 22UH 2.2A 130 MOHM SMD |
4,432 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±15% | 2.2 A | 1.7A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-221FIXED IND 220UH 560MA 1.08OHM SM |
2,296 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±10% | 560 mA | 550mA | Unshielded | 1.08Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-270FIXED IND 27UH 2A 160 MOHM SMD |
1,183 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±10% | 2 A | 1.55A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-271FIXED IND 270UH 500MA 1.38OHM SM |
2,030 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±10% | 500 mA | 480mA | Unshielded | 1.38Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-330FIXED IND 33UH 1.8A 170 MOHM SMD |
1,598 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±10% | 1.8 A | 1.45A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-331FIXED IND 330UH 470MA 1.55OHM SM |
4,903 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 470 mA | 400mA | Unshielded | 1.55Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-390FIXED IND 39UH 1.68A 210MOHM SMD |
2,721 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±10% | 1.68 A | 1.3A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-391FIXED IND 390UH 460MA 2.09OHM SM |
1,898 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±10% | 460 mA | 380mA | Unshielded | 2.09Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-470FIXED IND 47UH 1.55A 230MOHM SMD |
4,326 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±10% | 1.55 A | 1.2A | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-471FIXED IND 470UH 440MA 2.39OHM SM |
2,938 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±10% | 440 mA | 330mA | Unshielded | 2.39Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-560FIXED IND 56UH 1.43A 260MOHM SMD |
4,711 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±10% | 1.43 A | 1.15A | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-680FIXED IND 68UH 1.33A 350MOHM SMD |
1,741 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±10% | 1.33 A | 1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-820FIXED IND 82UH 1.23A 480MOHM SMD |
1,571 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±10% | 1.23 A | 920mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
IMC1812RQ39NMFIXED IND 39NH 450MA 300MOHM SMD |
1,634 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 39 nH | ±20% | 450 mA | - | Unshielded | 300mOhm Max | 50 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
BMQA000606204R7MA1INDUCTOR POWER |
2,459 |
|
Datasheet |
BMQx | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.2 A | 6A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.268" W (6.95mm x 6.80mm) | 0.079" (2.00mm) |
|
BMRA000606152R2MA1INDUCTOR POWER |
2,394 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.5 A | 6A | Shielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.059" (1.50mm) |
|
|
BMRA000606156R8MA1INDUCTOR POWER |
3,594 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.5 A | 4A | Shielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.059" (1.50mm) |
|
|
BMRA000606153R3MA1INDUCTOR POWER |
1,789 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.3 A | 5.5A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.059" (1.50mm) |
