Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-390KFIXED IND 39UH 150MA 4.5 OHM SMD |
3,019 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 39 µH | ±10% | 150 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-560KFIXED IND 56UH 135MA 5.5 OHM SMD |
3,002 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 56 µH | ±10% | 135 mA | - | Unshielded | 5.5Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-820KFIXED IND 82UH 120MA 7 OHM SMD |
4,957 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 82 µH | ±10% | 120 mA | - | Unshielded | 7Ohm Max | 50 @ 2.52MHz | 8MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-561KFIXED IND 560UH 50MA 30 OHM SMD |
2,777 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
PM40-821KFIXED IND 820UH 30MA 45 OHM SMD |
2,016 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 820 µH | ±10% | 30 mA | - | Unshielded | 45Ohm Max | 30 @ 796kHz | 2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

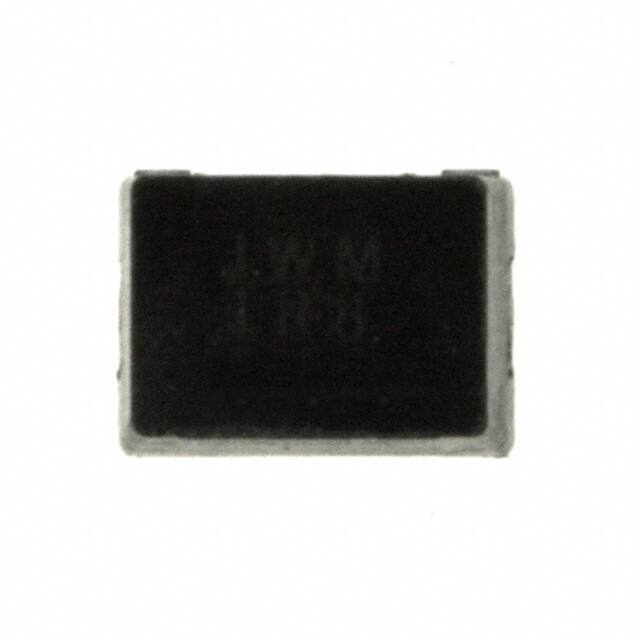

PM40-1R8KFIXED IND 1.8UH 390MA 650MOHM SM |
4,749 |
|
Datasheet |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.8 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
IDCP2218ER100MFIXED IND 10UH 1.44A 100MOHM SMD |
4,699 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER101MFIXED IND 100UH 520MA 700MOHM SM |
4,246 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 520 mA | - | Unshielded | 700mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER120MFIXED IND 12UH 1.4A 120 MOHM SMD |
2,135 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | - | Unshielded | 120mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER150MFIXED IND 15UH 1.3A 140 MOHM SMD |
4,938 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | - | Unshielded | 140mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER151MFIXED IND 150UH 400MA 1.1OHM SMD |
1,284 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 400 mA | - | Unshielded | 1.1Ohm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER180MFIXED IND 18UH 1.23A 150MOHM SMD |
2,607 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.23 A | - | Unshielded | 150mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER181MFIXED IND 180UH 380MA 1.38OHM SM |
4,185 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 380 mA | - | Unshielded | 1.38Ohm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER220MFIXED IND 22UH 1.11A 180MOHM SMD |
4,105 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER221MFIXED IND 220UH 350MA 1.57OHM SM |
2,970 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 350 mA | - | Unshielded | 1.57Ohm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER270MFIXED IND 27UH 970MA 200MOHM SMD |
1,534 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 970 mA | - | Unshielded | 200mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER330MFIXED IND 33UH 880MA 230MOHM SMD |
1,762 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER470MFIXED IND 47UH 720MA 370MOHM SMD |
3,210 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER4R7MFIXED IND 4.7UH SMD |
1,761 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
IDCP2218ER680MFIXED IND 68UH 610MA 460MOHM SMD |
2,178 |
|
Datasheet |
IDCP-2218 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 610 mA | - | Unshielded | 460mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
