Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

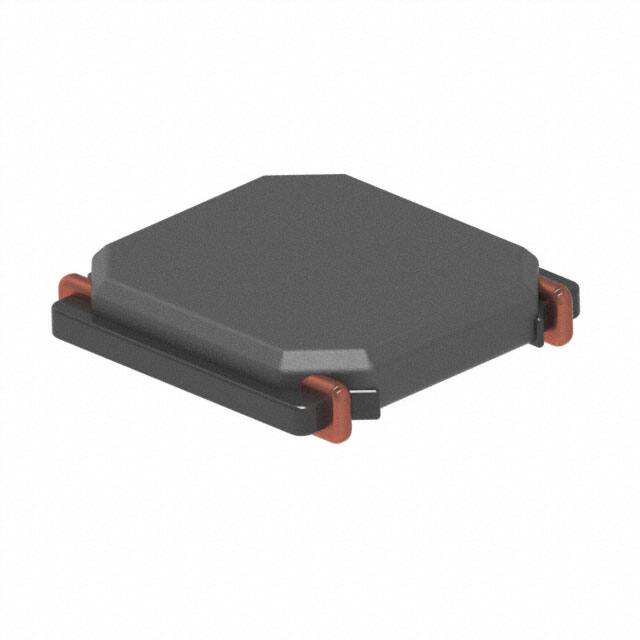

LMLP0606N4R7CTARFIXED IND 4.7UH 1.4A 290MOHM SMD |
1,299 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.4 A | 1.4A | Shielded | 290mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.043" (1.10mm) |
|
LMLP06A6M220CTARFIXED IND 22UH 630MA 530MOHM SMD |
2,205 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 630 mA | 760mA | Shielded | 530mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LQW15CNR13J00DFIXED IND 130NH 640MA 0.23OHM SM |
2,128 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 130 nH | ±5% | 640 mA | - | Unshielded | 230mOhm Max | - | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NP05DB100MFIXED IND 10UH 1.6A 100 MOHM SMD |
3,025 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.6 A | - | Shielded | 100mOhm Max | - | 25MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB101MFIXED IND 100UH 550MA 830MOHM SM |
3,743 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 µH | ±20% | 550 mA | - | Shielded | 830mOhm Max | - | 8.3MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB150MFIXED IND 15UH 1.4A 160 MOHM SMD |
4,640 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 1.4 A | - | Shielded | 160mOhm Max | - | 24MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB220MFIXED IND 22UH 1.2A 220 MOHM SMD |
2,972 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 1.2 A | - | Shielded | 220mOhm Max | - | 18MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB330MFIXED IND 33UH 800MA 350MOHM SMD |
3,938 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 800 mA | - | Shielded | 350mOhm Max | - | 14MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB3R3MFIXED IND 3.3UH 2.5A 40 MOHM SMD |
1,778 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 2.5 A | - | Shielded | 40mOhm Max | - | 45MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB470MFIXED IND 47UH 750MA 430MOHM SMD |
4,074 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 750 mA | - | Shielded | 430mOhm Max | - | 12MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB4R7MFIXED IND 4.7UH 2.2A 49 MOHM SMD |
2,037 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 2.2 A | - | Shielded | 49mOhm Max | - | 35MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB680MFIXED IND 68UH 650MA 660MOHM SMD |
4,964 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 650 mA | - | Shielded | 660mOhm Max | - | 9.7MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
|
NP05DB6R8MFIXED IND 6.8UH 2.1A 70 MOHM SMD |
1,708 |
|
Datasheet |
N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±20% | 2.1 A | - | Shielded | 70mOhm Max | - | 30MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
|
TYS252010L6R8M-10FIXED IND 6.8UH 590MA 896MOHM SM |
4,649 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 590 mA | 780mA | Shielded | 896mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012LR47N-10FIXED IND 470NH 2.15A 56MOHM SMD |
1,123 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±30% | 2.15 A | 3.82A | Shielded | 56mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
74479787222AFIXED IND 2.2UH 1.8A 106.25 MOHM |
2,668 |
|
- |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 2.2 µH | ±20% | 1.8 A | 700mA | Shielded | 106.25mOhm Max | 25 @ 1MHz | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
PM0805-2N2MFIXED IND 2.2NH 600MA 80MOHM SMD |
4,972 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 nH | ±20% | 600 mA | - | Unshielded | 80mOhm Max | 15 @ 1.5GHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
PM0805-6N8MFIXED IND 6.8NH 600MA 110MOHM SM |
3,858 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±20% | 600 mA | - | Unshielded | 110mOhm Max | 50 @ 1GHz | 5.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
PM0805-22NMFIXED IND 22NH 500MA 220MOHM SMD |
3,371 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 22 nH | ±20% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
PM0805-27NMFIXED IND 27NH 500MA 250MOHM SMD |
4,284 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 27 nH | ±20% | 500 mA | - | Unshielded | 250mOhm Max | 55 @ 500MHz | 2.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
