Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82422A1123J108SMT-INDUCTOR DE 12 U |
1,441 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82422A3181J108SMT-INDUCTOR DE 0,18 UH 5% |
2,680 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±5% | 360 mA | - | Unshielded | 380mOhm Max | 25 @ 30MHz | 800MHz | AEC-Q200 | -55°C ~ 145°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
HPC5040NF-470M47 UH SHIELDED DRUM CORE, WIREWO |
4,081 |
|
- |
HPC5040NF | Nonstandard | Active | Wirewound | - | 47 µH | ±20% | 1 A | 1.1A | Shielded | 270mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.157" (4.00mm) | |
|
|
HPC5040NF-330M33 UH SHIELDED DRUM CORE, WIREWO |
3,364 |
|
- |
HPC5040NF | Nonstandard | Active | Wirewound | - | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.157" (4.00mm) | |
|
LCXND6060WHL1R5NMGFIXED IND 1.5UH 4.2A 20.8MOHM SM |
3,577 |
|
- |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 5.1A | Unshielded | 16mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LCXND6060WHL150MMGFIXED IND 15UH 1.8A 123.5MOHM SM |
2,795 |
|
- |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Unshielded | 95mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LCXND6060WHL0R9NMGFIXED IND 900NH 4.6A 16.9MOHM SM |
2,242 |
|
- |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Unshielded | 13mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
AISC-0603F-R56J-TFIXED IND 560NH 380MA 510MOHM SM |
1,829 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 380 mA | - | Unshielded | 510mOhm Max | - | 590MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

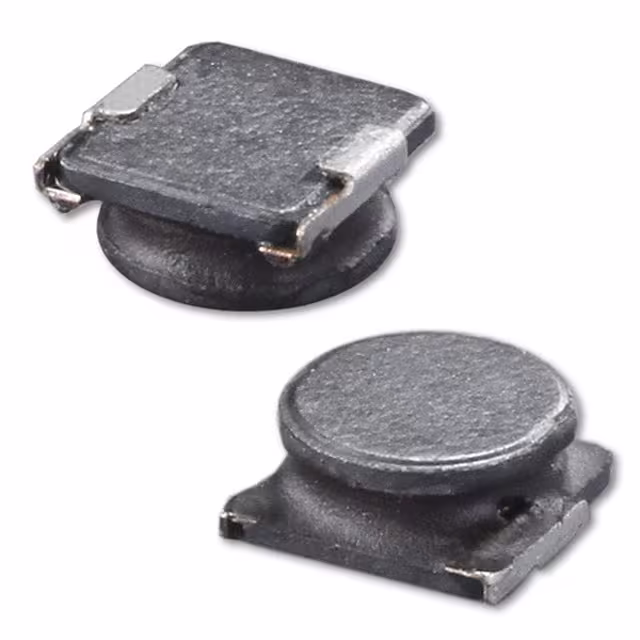

ASPI-0315FSSA-2R2M-T3FIXED IND 2.2UH 1.28A 60MOHM SMD |
1,416 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 1.28 A | 1.6A | Shielded | 60mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-3R3M-T3FIXED IND 3.3UH 1.18A 80MOHM SMD |
4,594 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 1.18 A | 1.3A | Shielded | 80mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-4R7M-T3FIXED IND 4.7UH 1A 110 MOHM SMD |
1,725 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 1 A | 1.1A | Shielded | 110mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-6R8M-T3FIXED IND 6.8UH 850MA 160MOHM SM |
1,841 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 850 mA | 1A | Shielded | 160mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-100M-T3FIXED IND 10UH 750MA 200MOHM SMD |
3,032 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 750 mA | 820mA | Shielded | 200mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-220M-T3FIXED IND 22UH 470MA 500MOHM SMD |
4,637 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 470 mA | 560mA | Shielded | 500mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-0315FSSA-470M-T3FIXED IND 47UH 330MA 1.2 OHM SMD |
1,090 |
|
Datasheet |
ASPI-0315FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 330 mA | 370mA | Shielded | 1.2Ohm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
SWPA4020S6R8MTFIXED IND 6.8UH 1.04A 163MOHM SM |
2,539 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.04 A | 2.2A | Shielded | 163mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
WLQC1515H0G68NLBCOIL AIR CORE 68NH 2% SMD |
4,424 |
|
Datasheet |
QC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 68 nH | ±2% | 5.5 A | - | Unshielded | 8.6mOhm Max | 230 @ 400MHz | 2.13GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.210" L x 0.140" W (5.33mm x 3.56mm) | 0.154" (3.91mm) |
|
|
WLQC1515H0G47NLBCOIL AIR CORE 47NH 2% SMD |
1,504 |
|
Datasheet |
QC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|
|
WLQC1111H0G47NLBCOIL AIR CORE 47NH 2% SMD |
1,250 |
|
Datasheet |
QC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 4.4 A | - | Unshielded | 11.3mOhm Max | 200 @ 400MHz | 2.2GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.130" L x 0.105" W (3.30mm x 2.67mm) | 0.115" (2.92mm) |
|
|
WLQC2222H0GR30LBCOIL AIR CORE 0.30NH 2% SMD |
4,738 |
|
Datasheet |
QC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 300 nH | ±2% | 3.7 A | - | Unshielded | 13.8mOhm Max | 150 @ 50MHz | 720MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.470" L x 0.225" W (11.94mm x 5.72mm) | 0.234" (5.95mm) |
