Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18ANR39G0ZDFIXED IND 390NH 80MA 6.2OHM SMD |
3,365 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 390 nH | ±2% | 80 mA | - | Unshielded | 6.2Ohm Max | 30 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQG15WZ0N8B02JFIXED IND 0.8NH 1.2A 0.03OHM SMD |
1,994 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 0.8 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ82NG02JFIXED IND 82NH 160MA 2.3OHM SMD |
2,874 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 82 nH | ±2% | 160 mA | - | Unshielded | 2.3Ohm Max | 22 @ 250MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ2N1B02JFIXED IND 2.1NH 1A 0.06OHM SMD |
3,390 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.1 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ILSB0805ER120KFIXED IND 12UH 15MA 1.25 OHM SMD |
3,330 |
|
Datasheet |
ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Shielded | 1.25Ohm Max | 50 @ 2MHz | 26MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
ILSB0805ER180KFIXED IND 18UH 5MA 900 MOHM SMD |
1,480 |
|
Datasheet |
ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 30 @ 1MHz | 21MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
ILSB0805ER220KFIXED IND 22UH 5MA 1.1 OHM SMD |
4,412 |
|
Datasheet |
ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 1.1Ohm Max | 30 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
LLQPA201212T100KFIXED IND 10UH 340MA 1.56OHM SMD |
4,619 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 340 mA | 240mA | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T470MFIXED IND 47UH 150MA 7.54OHM SMD |
4,859 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 150 mA | 120mA | Unshielded | 5.8Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T1R0MFIXED IND 1UH 840MA 247 MOHM SMD |
1,441 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 840 mA | 700mA | Unshielded | 190mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T220MFIXED IND 22UH 190MA 4.81OHM SMD |
3,626 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 190 mA | 170mA | Unshielded | 3.7Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T2R2MFIXED IND 2.2UH 640MA 429MOHM SM |
4,810 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 640 mA | 530mA | Unshielded | 330mOhm | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T220KFIXED IND 22UH 190MA 4.81OHM SMD |
4,171 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 190 mA | 170mA | Unshielded | 3.7Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T4R7MFIXED IND 4.7UH 520MA 650MOHM SM |
1,427 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 520 mA | 360mA | Unshielded | 500mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T100MFIXED IND 10UH 340MA 1.56OHM SMD |
1,621 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 340 mA | 240mA | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T470KFIXED IND 47UH 150MA 7.54OHM SMD |
2,827 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 150 mA | 120mA | Unshielded | 5.8Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
79F1R0K-TR-RCFIXED IND 1UH 270MA 800 MOHM TH |
4,271 |
|
Datasheet |
79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 270 mA | - | Unshielded | 800mOhm Max | 35 @ 25MHz | 150MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F470K-TR-RCFIXED IND 47UH 70MA 5.8 OHM TH |
3,873 |
|
Datasheet |
79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 70 mA | - | Unshielded | 5.8Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|

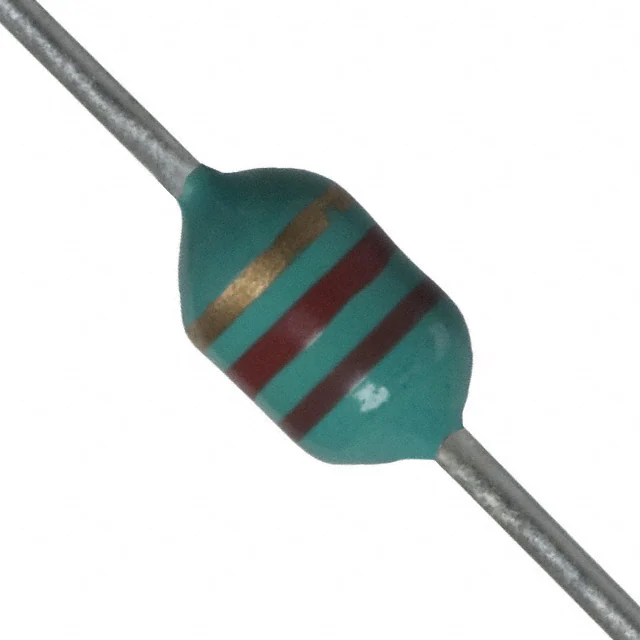

79F2R2K-TR-RCFIXED IND 2.2UH 230MA 1.2 OHM TH |
1,552 |
|
Datasheet |
79F | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 230 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
|
WLPN202012M4R7PEINDUCTOR POWER 4.7UH SMD |
3,144 |
|
- |
PN | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 910 mA | 900mA | Shielded | 241mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
