Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRC0603CKR10GV001TFIXED IND 100NH 300MA 2 OHM SMD |
1,592 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±10% | 300 mA | - | Unshielded | 2Ohm Max | 12 @ 100MHz | 750MHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0603CKR12GV001TFIXED IND 120NH 300MA 2.3OHM SMD |
3,285 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 120 nH | ±10% | 300 mA | - | Unshielded | 2.3Ohm Max | 8 @ 50MHz | 700MHz | - | -55°C ~ 100°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0603CKR15GV001TFIXED IND 150NH 300MA 2.4OHM SMD |
2,652 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 150 nH | ±10% | 300 mA | - | Unshielded | 2.4Ohm Max | 8 @ 50MHz | 650MHz | - | -55°C ~ 100°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0603CKR18GV001TFIXED IND 180NH 300MA 2.7OHM SMD |
2,404 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 180 nH | ±10% | 300 mA | - | Unshielded | 2.7Ohm Max | 8 @ 50MHz | 550MHz | - | -55°C ~ 100°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0603CKR22GV001TFIXED IND 220NH 300MA 2.8OHM SMD |
3,066 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±10% | 300 mA | - | Unshielded | 2.8Ohm Max | 8 @ 50MHz | 450MHz | - | -55°C ~ 100°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|

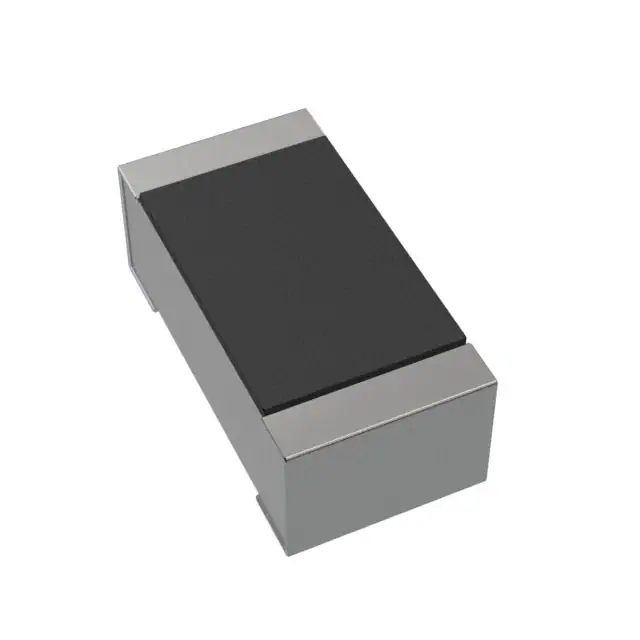

CML0306-4N7-JNHFIXED IND 4.7NH 280MA 450MOHM SM |
3,116 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 4.7 nH | ±5% | 280 mA | - | Shielded | 450mOhm Max | 4 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-5N1-JNHFIXED IND 5.1NH 270MA 500MOHM SM |
1,385 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 5.1 nH | ±5% | 270 mA | - | Shielded | 500mOhm Max | 4 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-5N6-JNHFIXED IND 5.6NH 260MA 550MOHM SM |
4,578 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 5.6 nH | ±5% | 260 mA | - | Shielded | 550mOhm Max | 4 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-6N8-JNHFIXED IND 6.8NH 230MA 700MOHM SM |
1,735 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 6.8 nH | ±5% | 230 mA | - | Shielded | 700mOhm Max | 4 @ 100MHz | 5.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-7N5-JNHFIXED IND 7.5NH 180MA 1.1OHM SMD |
1,943 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 7.5 nH | ±5% | 180 mA | - | Shielded | 1.1Ohm Max | 4 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-8N2-JNHFIXED IND 8.2NH 180MA 1.2OHM SMD |
3,508 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 8.2 nH | ±5% | 180 mA | - | Shielded | 1.2Ohm Max | 4 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-9N1-JNHFIXED IND 9.1NH 180MA 1.2OHM SMD |
2,714 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 9.1 nH | ±5% | 180 mA | - | Shielded | 1.2Ohm Max | 4 @ 100MHz | 4.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-10N-JNHFIXED IND 10NH 180MA 1.3 OHM SMD |
2,044 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 10 nH | ±5% | 180 mA | - | Shielded | 1.3Ohm Max | 4 @ 100MHz | 4.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-12N-JNHFIXED IND 12NH 180MA 1.3 OHM SMD |
1,080 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 12 nH | ±5% | 180 mA | - | Shielded | 1.3Ohm Max | 4 @ 100MHz | 3.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-15N-JNHFIXED IND 15NH 180MA 1.5 OHM SMD |
2,266 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 15 nH | ±5% | 180 mA | - | Shielded | 1.5Ohm Max | 4 @ 100MHz | 3.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-18N-JNHFIXED IND 18NH 160MA 1.7 OHM SMD |
3,093 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 18 nH | ±5% | 160 mA | - | Shielded | 1.7Ohm Max | 4 @ 100MHz | 3.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
|
CML0306-22N-JNHFIXED IND 22NH 120MA 2.55OHM SMD |
3,668 |
|
Datasheet |
CML0306 | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 22 nH | ±5% | 120 mA | - | Shielded | 2.55Ohm Max | 4 @ 100MHz | 2.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.61mm x 0.31mm) | 0.013" (0.33mm) |
|
LQP03TN62NHZ2DFIXED IND |
4,062 |
|
Datasheet |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | 62 nH | ±3% | 100 mA | - | Unshielded | 8Ohm Max | 8 @ 300MHz | 1.1GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN3N8BZ2DFIXED IND |
4,305 |
|
Datasheet |
* | 0201 (0603 Metric) | Tape & Reel (TR) | Active | - | - | 3.8 nH | ±0.1nH | 400 mA | - | Unshielded | 300mOhm Max | 14 @ 500MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
SDFL1005Q2R7MTFFIXED IND 2.7UH 10MA 2.4 OHM SMD |
4,341 |
|
Datasheet |
SDFL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±20% | 10 mA | - | Shielded | 2.4Ohm Max | 20 @ 10MHz | 28MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
