Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX20-16-52LP-RFIXED IND 20UH 31.5A 3.4 MOHM TH |
3,896 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.323" Dia (59.00mm) | 1.102" (28.00mm) |
|
|
LHDM010401DYBV0EDUST CHOKE COIL |
2,296 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | - | 490 µH | ±20% | 10 A | - | Unshielded | 58mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.988" Dia x 1.063" W (50.50mm x 27.00mm) | - |
|
|
LHDM010151CYBV0EDUST CHOKE COIL |
2,792 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | - | 170 µH | ±20% | 10 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.909" Dia x 1.024" W (48.50mm x 26.00mm) | - |
|

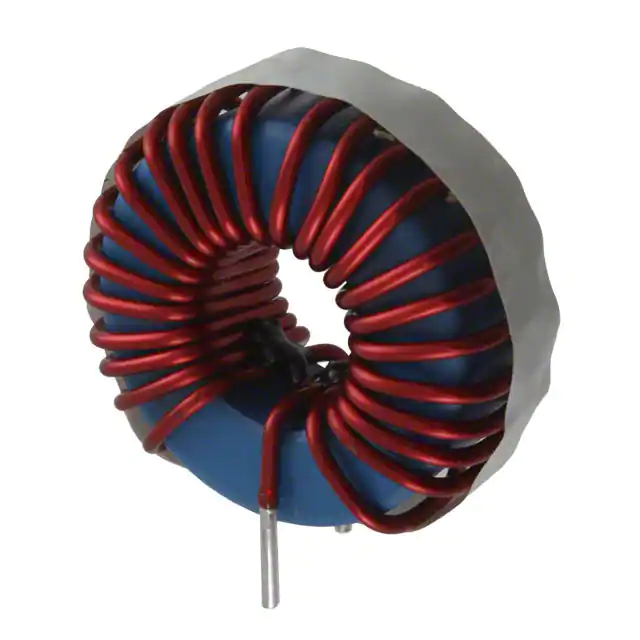

CTX100-10-52-RFIXED IND 100UH 17.6A 10.9 MOHM |
2,072 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 17.6 A | 13A | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.244" Dia x 1.083" W (57.00mm x 27.50mm) | - |
|
|
Z14FIXED IND 44UH 680MA 2.6 OHM |
4,985 |
|
Datasheet |
Z | - | Bulk | Active | - | - | 44 µH | - | 680 mA | - | - | 2.6Ohm | - | - | - | - | 1 kHz | - | - | - | 0.437" Dia x 1.992" L (11.11mm x 50.60mm) | - |
|
|
CTX150-7-52-RFIXED IND 150UH 12.8A 20.4 MOHM |
1,708 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.146" Dia x 1.000" W (54.50mm x 25.40mm) | - |
|
|
7843763540220THT HIGH CURRENT INDUCTOR 3540; |
4,584 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 40.6 A | 42A | Unshielded | 3.2mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
|
7843763540150THT HIGH CURRENT INDUCTOR 3540; |
4,800 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±20% | 45.3 A | 51.6A | Unshielded | 2.16mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
|
CTX150-7-52LP-RFIXED IND 150UH 12.8A 20.4 MOHM |
1,248 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.146" Dia (54.50mm) | 1.000" (25.40mm) |
|
|
LHDM005571CYFV0EDUST CHOKE COIL |
2,838 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | - | 710 µH | ±20% | 5 A | - | Unshielded | 76mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.870" Dia x 0.906" W (47.50mm x 23.00mm) | - |
|
|
LHDM010201DVFV0EDUST CHOKE COIL |
1,448 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | - | 0.34 mH | ±20% | 10 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.732" Dia x 0.906" W (44.00mm x 23.00mm) | - |
|
|
78437613540100THT HIGH CURRENT INDUCTOR 3540; |
1,323 |
|
Datasheet |
WE-HCFAT | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 56.7 A | 62A | Unshielded | 1.2mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
|
85068-A0FIXED IND 9.7UH 200 MOHM SMD |
1,724 |
|
Datasheet |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 9.7 µH | ±25% | - | 250mA | Shielded | 200mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
1539M32FIXED IND 10MH 1.5A 1.55 OHM TH |
3,744 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 1.5 A | - | Unshielded | 1.55Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
IHXL1100OZEB4R7K31FIXED IND 4.7UH 65A 1.01 MOHM SM |
3,280 |
|
Datasheet |
IHXL1100OZ-31 | Radial | Tray | Active | Molded | - | 4.7 µH | ±10% | 65 A | 49A | Shielded | 1.01mOhm Max | - | 11MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
|
IHXL1100OZEB1R0K31FIXED IND 1UH 138A 0.31 MOHM SMD |
2,227 |
|
Datasheet |
IHXL1100OZ-31 | Radial | Tray | Active | Molded | - | 1 µH | ±10% | 138 A | 102A | Shielded | 0.31mOhm Max | - | 29MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
|
IHXL1100OZEB3R3K31FIXED IND 3.3UH 76A 0.77 MOHM SM |
4,295 |
|
Datasheet |
IHXL1100OZ-31 | Radial | Tray | Active | Molded | - | 3.3 µH | ±10% | 76 A | 60A | Shielded | 0.77mOhm Max | - | 15MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
|
IHXL1100OZEB100K31FIXED IND 10UH 41A 2.59 MOHM SMD |
1,796 |
|
Datasheet |
IHXL1100OZ-31 | Radial | Tray | Active | Molded | - | 10 µH | ±10% | 41 A | 35A | Shielded | 2.59mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
|
IHXL1100OZEB2R2K31FIXED IND 2.2UH 79A 0.52 MOHM SM |
3,096 |
|
Datasheet |
IHXL1100OZ-31 | Radial | Tray | Active | Molded | - | 2.2 µH | ±10% | 79 A | 80A | Shielded | 0.52mOhm Max | - | 19MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
|
LHDM015301DZBV0EDUST CHOKE COIL |
1,090 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | - | 360 µH | ±20% | 15 A | - | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 2.264" Dia x 1.260" W (57.50mm x 32.00mm) | - |
