Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43MN101J03LFIXED IND 100UH 160MA 2.5OHM SMD |
4,379 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 160 mA | - | Unshielded | 2.5Ohm Max | 40 @ 796kHz | 6.8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN221J03LFIXED IND 220UH 110MA 5.4OHM SMD |
3,624 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 110 mA | - | Unshielded | 5.4Ohm Max | 40 @ 796kHz | 4.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN331J03LFIXED IND 330UH 95MA 8.2 OHM SMD |
3,983 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 95 mA | - | Unshielded | 8.2Ohm Max | 40 @ 796kHz | 3.6MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN821J03LFIXED IND 820UH 60MA 20.5OHM SMD |
4,044 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 60 mA | - | Unshielded | 20.5Ohm Max | 40 @ 796kHz | 2.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
CC322522A-101KFIXED IND 100UH 180MA 9 OHM SMD |
3,271 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 180 mA | 150mA | Unshielded | 9Ohm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 796 kHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
744765075GAFIXED IND 7.5NH 680MA 104MOHM SM |
3,225 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±0.2nH | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
LQH2HPHR47MGRLFIXED IND 0.47UH 2900MA SMD |
1,310 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±20% | 1.47 A | 2.9A | Shielded | 54mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPHR68MGRLFIXED IND 0.68UH 2430MA SMD |
3,877 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±20% | 1.35 A | 2.43A | Shielded | 66mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH3R3MGRLFIXED IND 3.3UH 1230MA SMD |
2,456 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 660 mA | 1.23A | Shielded | 270mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH1R5MGRLFIXED IND 1.5UH 1850MA SMD |
3,647 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.11 A | 1.7A | Shielded | 104.4mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH1R0MGRLFIXED IND 1UH 2130MA SMD |
1,871 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 1.2 A | 2.13A | Shielded | 81.6mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH2R2MGRLFIXED IND 2.2UH 1550MA SMD |
1,411 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 850 mA | 1.55A | Shielded | 160.8mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH6R8MGRLFIXED IND 6.8UH 860MA SMD |
4,445 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 490 mA | 830mA | Shielded | 474mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH100MGRLFIXED IND 10UH 710MA SMD |
4,993 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 430 mA | 700mA | Shielded | 672mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPH150MGRLFIXED IND 15UH 570MA SMD |
2,631 |
|
Datasheet |
LQH2HPH_GR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 310 mA | 570mA | Shielded | 1.11Ohm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

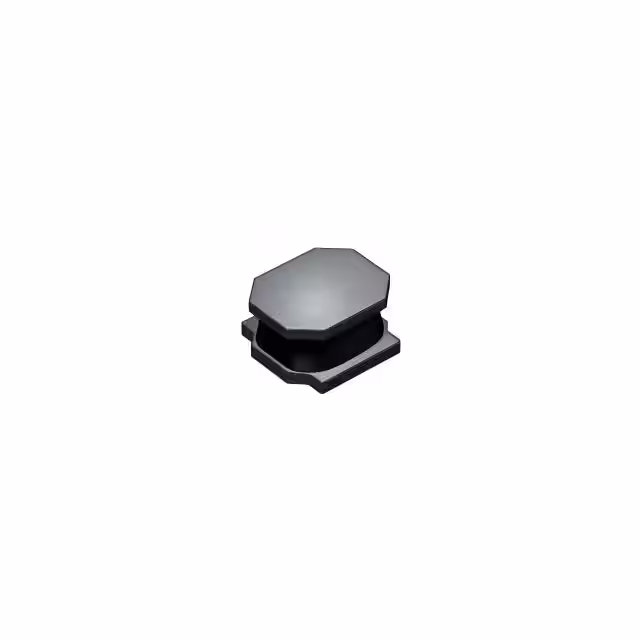

LCXND6060YEL330MMGFIXED IND 33UH 1.4A 183.3MOHM SM |
100 |
|
Datasheet |
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.65A | Unshielded | 141mOhm | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH43PN4R7M26LFIXED IND 4.7UH 1.6A 90 MOHM SMD |
1,175 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.4A | Shielded | 90mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN4R7K03LFIXED IND 4.7UH 500MA 400MOHM SM |
4,982 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 500 mA | - | Unshielded | 400mOhm Max | 30 @ 1MHz | 38MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43PZ470M26LFIXED IND 47UH 520MA 0.718OHM SM |
4,386 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 520 mA | 470mA | Shielded | 718mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN102J03LFIXED IND 1MH 50MA 25 OHM SMD |
1,983 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 50 mA | - | Unshielded | 25Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
