Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN6N8G0ZDFIXED IND 6.8NH 700MA 0.09OHM SM |
1,074 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.8 nH | ±2% | 700 mA | - | Unshielded | 90mOhm Max | 25 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW15AN18NG0ZDFIXED IND 18NH 370MA 0.27OHM SMD |
3,527 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 18 nH | ±2% | 370 mA | - | Unshielded | 270mOhm Max | 25 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

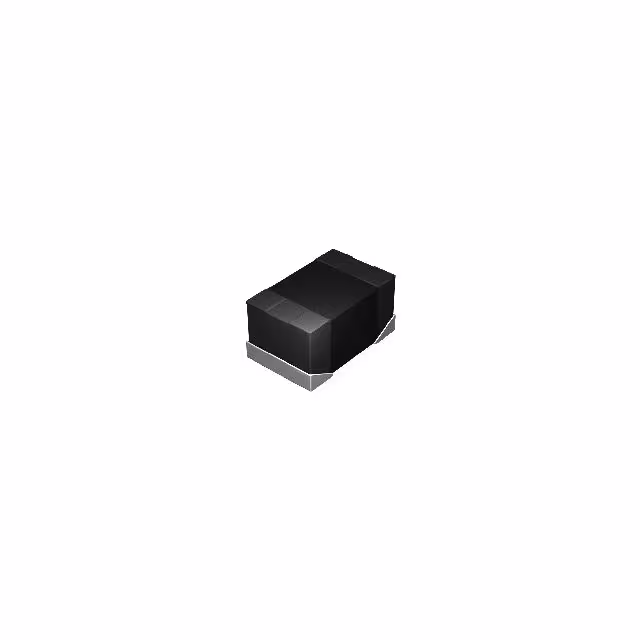

LSBHB2012KKTR24NFIXED IND 240NH 2.4A 41 MOHM SMD |
1,414 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±30% | 2.4 A | 3A | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

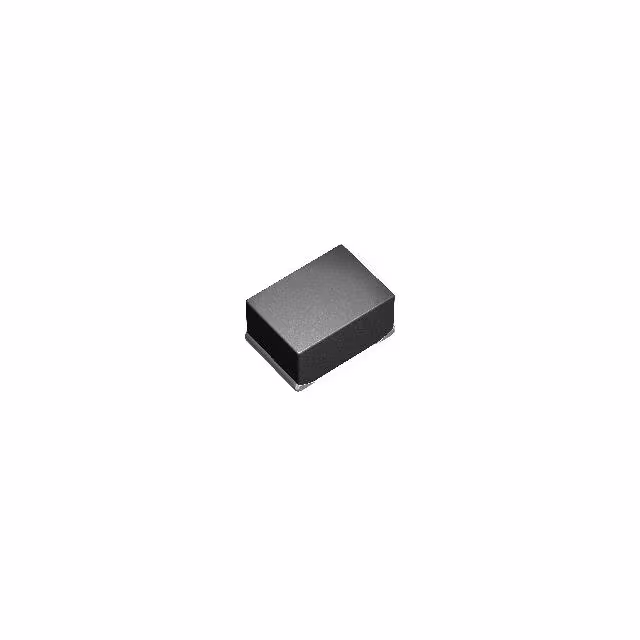

LSANB2016KKT1R5MFIXED IND 1.5UH 1.65A 130MOHM SM |
3,489 |
|
Datasheet |
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 1.6A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
BDCC00252012R47MCGINDUCTOR MOLDED 0.47UH 6.7A |
4,202 |
|
Datasheet |
BDCC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 6 A | 6.7A | Unshielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
7447908FIXED IND |
3,472 |
|
Datasheet |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 10 µH | ±10% | 15 mA | - | Unshielded | 1Ohm Max | 50 @ 2MHz | 28MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQW18AN18NG1ZDFIXED IND 18NH 700MA 0.085OHM SM |
1,545 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 18 nH | ±2% | 700 mA | - | Unshielded | 85mOhm Max | 42 @ 250MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
AWCS00231715R47G00INDUCTOR RF |
2,121 |
|
Datasheet |
AWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 250 mA | - | Unshielded | 1.76Ohm Max | 33 @ 100MHz | 450MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
SRP2010DPA-1R5MIND,2X1.6X1MM,1.5UH20%,2.1A,SHD |
2,959 |
|
Datasheet |
SRP2010DPA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.1 A | 2.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRP2010DPA-R56MIND,2X1.6X1MM,0.56UH20%,3A,SHD |
4,969 |
|
Datasheet |
SRP2010DPA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 560 nH | ±20% | 3 A | 4A | Shielded | 57mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
AIML-0402HP-R56K-TIND 560 NH 250MA 140 MOHM |
1,483 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±10% | 250 mA | 300mA | Shielded | 140mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R12K-TIND 120 NH 500MA 390 MOHM |
3,510 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±10% | 500 mA | 650mA | Shielded | 390mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R22K-TIND 220 NH 400MA 580 MOHM |
4,099 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 400 mA | 480mA | Shielded | 580mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R11K-TIND 110 NH 500MA 390 MOHM |
4,968 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 110 nH | ±10% | 500 mA | 650mA | Shielded | 390mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-2R2K-TIND 2.2 UH 350MA 550 MOHM |
3,543 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 350 mA | 100mA | Shielded | 550mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R47K-TIND 470 NH 300MA 970 MOHM |
1,810 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 300 mA | 300mA | Shielded | 970mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R33K-TIND 330 NH 350MA 650 MOHM |
1,424 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±10% | 350 mA | 400mA | Shielded | 650mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R27K-TIND 270 NH 350MA 650 MOHM |
4,688 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±10% | 350 mA | 450mA | Shielded | 650mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-77NK-TIND 77 NH 700MA 270 MOHM |
2,170 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 77 nH | ±10% | 700 mA | 900mA | Shielded | 270mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
AIML-0402HP-R10K-TIND 100 NH 600MA 350 MOHM |
3,788 |
|
Datasheet |
AIML-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 600 mA | 700mA | Shielded | 350mOhm | - | - | - | -45°C ~ 125°C | 0.1 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
