Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464A4332M000FIXED IND 3.3UH 4.9A 15 MOHM SMD |
4,534 |
|
Datasheet |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.9 A | 6.6A | Unshielded | 15mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
5800-820-RCFIXED IND 82UH 900MA 190 MOHM TH |
3,983 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 900 mA | 1.3A | Unshielded | 190mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
744779068FIXED IND 6.8UH 2.2A 35 MOHM TH |
2,379 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.2 A | 2.8A | Unshielded | 35mOhm Max | - | 39.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
IHLP3232DZER3R3M8AIHLP-3232DZ-8A 3.3 20% ER E3 |
1,194 |
|
Datasheet |
IHLP-3232DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 10.6 A | 11.8A | Shielded | 16.48mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
B82476A1222M000FIXED IND 2.2UH 6.1A 10.5MOHM SM |
2,531 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 10.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
IHLP3232CZER1R0M11FIXED IND 1UH 16A 6.49 MOHM SMD |
3,707 |
|
Datasheet |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 16 A | 14.8A | Shielded | 6.49mOhm Max | - | 51MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
MPXV1D0830LR22FIXED IND 220NH 30.7A 1.9MOHM SM |
1,941 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 30.7 A | 43A | Shielded | 1.9mOhm Max | - | 140MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
SRR1210A-1R0YFIXED IND 1UH 11A 6 MOHM SMD |
1,585 |
|
Datasheet |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 11 A | 16.5A | Shielded | 6mOhm Max | 10 @ 7.96MHz | 85MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP1238A-R60MFIXED IND 600NH 29A 2.2 MOHM SMD |
1,105 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 600 nH | ±20% | 29 A | 51A | Shielded | 2.2mOhm Max | 15 @ 100kHz | 53MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
SRP5030TA-R33MFIXED IND 330NH 14A 5 MOHM SMD |
3,768 |
|
Datasheet |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 14 A | 18A | Shielded | 5mOhm Max | 5 @ 100kHz | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
CMLE105T-1R5MSFIXED IND 1.5UH 24A 3 MOHM SMD |
2,528 |
|
Datasheet |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 24 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.197" (5.00mm) |
|
18R154CFIXED IND 150UH 1.1A 165 MOHM TH |
4,333 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 150 µH | ±10% | 1.1 A | - | Unshielded | 165mOhm Max | 40 @ 100kHz | 5.58MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
HCM1104-R45-RFIXED IND 450NH 29A 1.23MOHM SMD |
1,084 |
|
Datasheet |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 450 nH | ±20% | 29 A | 36A | Shielded | 1.23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
DFEG7030D-1R5M=P3FIXED IND 1.5UH 7.6A 15MOHM SMD |
3,420 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1.5 µH | ±20% | 7.6 A | 9.7A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-220M=P3FIXED IND 22UH 1.9A 198MOHM SMD |
4,850 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 22 µH | ±20% | 1.9 A | 2.7A | Shielded | 198mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-5R6M=P3FIXED IND 5.6UH 3.8A 54MOHM SMD |
4,988 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 5.6 µH | ±20% | 3.8 A | 5.4A | Shielded | 54mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-6R8M=P3FIXED IND 6.8UH 3.5A 59MOHM SMD |
1,394 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 5.2A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
HCM1A0703-330-RFIXED IND 33UH 1.6A 242MOHM SMD |
3,003 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 1.6 A | 2.3A | Shielded | 242mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
MDH7045C-101MA=P3FIXED IND 100UH 800MA 290MOHM SM |
1,835 |
|
Datasheet |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 800 mA | 750mA | Shielded | 290mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|

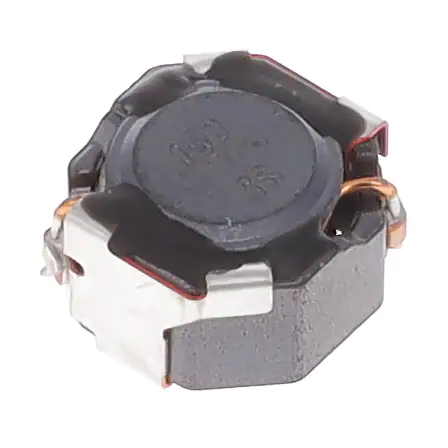

MDH7045C-150MA=P3FIXED IND 15UH 1.8A 55 MOHM SMD |
3,166 |
|
Datasheet |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 55mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
