Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV25T-3R3M-EFRDFIXED IND 3.3UH 570MA 528MOHM SM |
2,122 |
|
Datasheet |
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 570 mA | - | Unshielded | 528mOhm Max | 10 @ 7.96MHz | 54MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLCV25T-R68M-EFRDFIXED IND 680NH 1.26A 108MOHM SM |
4,517 |
|
Datasheet |
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.26 A | - | Unshielded | 108mOhm Max | 5 @ 25.2MHz | 160MHz | AEC-Q200 | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NRV3012T3R3MFIXED IND 3.3UH 1A 180 MOHM SMD |
3,220 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | 1.6A | Shielded | 180mOhm Max | - | 55MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
NRV3012T6R8MFIXED IND 6.8UH 650MA 360MOHM SM |
1,548 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 650 mA | 950mA | Shielded | 360mOhm Max | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
-2,00mm.jpg)
|
LB3218T6R8MVFIXED IND 6.8UH 380MA 221MOHM SM |
1,079 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 6.8 µH | ±20% | 380 mA | - | Unshielded | 221mOhm Max | - | 40MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
LB3218T150MVFIXED IND 15UH 300MA 416MOHM SMD |
3,752 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 15 µH | ±20% | 300 mA | - | Unshielded | 416mOhm Max | - | 25MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LB3218T681KVFIXED IND 680UH 45MA 22.1OHM SMD |
2,522 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 680 µH | ±10% | 45 mA | - | Unshielded | 22.1Ohm Max | - | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
-1,0.jpg)
|
CVH201610A-1R0MFIXED IND 1UH 1.4A 106.25MOHM SM |
4,357 |
|
Datasheet |
CVH201610A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.4 A | - | Shielded | 106.25mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQW15AW51NJ80DFIXED IND 51NH 480MA 0.47OHM SMD |
1,218 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 51 nH | ±5% | 480 mA | - | Unshielded | 470mOhm Max | 33 @ 250MHz | 2.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
LB3218T2R2MVFIXED IND 2.2UH 775MA 90MOHM SMD |
4,915 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 2.2 µH | ±20% | 775 mA | - | Unshielded | 90mOhm | - | 68MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
ASPI-2010-3R3M-TFIXED IND 3.3UH 980MA 335MOHM SM |
3,523 |
|
Datasheet |
ASPI-2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 980 mA | 1.05A | Shielded | 335mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQW2UASR62J0CLFIXED IND 620NH 300MA 1.4OHM SMD |
4,594 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 620 nH | ±5% | 300 mA | - | Unshielded | 1.4Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
-Height-1.00mm.jpg)
|
DFE252010P-R33M=P2FIXED IND 330NH 3.8A 0.029OHM SM |
3,807 |
|
Datasheet |
DFE252010P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 3.8 A | 5.7A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
MBKK1608H1R0MFIXED IND 1UH 1.15A 150 MOHM SMD |
1,082 |
|
Datasheet |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.15 A | 800mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LB3218T151KVFIXED IND 150UH 105MA 4.16OHM SM |
3,382 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 150 µH | ±10% | 105 mA | - | Unshielded | 4.16Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
|
MBKK1608HR47NFIXED IND 470NH 1.4A 104MOHM SMD |
3,678 |
|
Datasheet |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±30% | 1.4 A | 1.1A | Shielded | 104mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

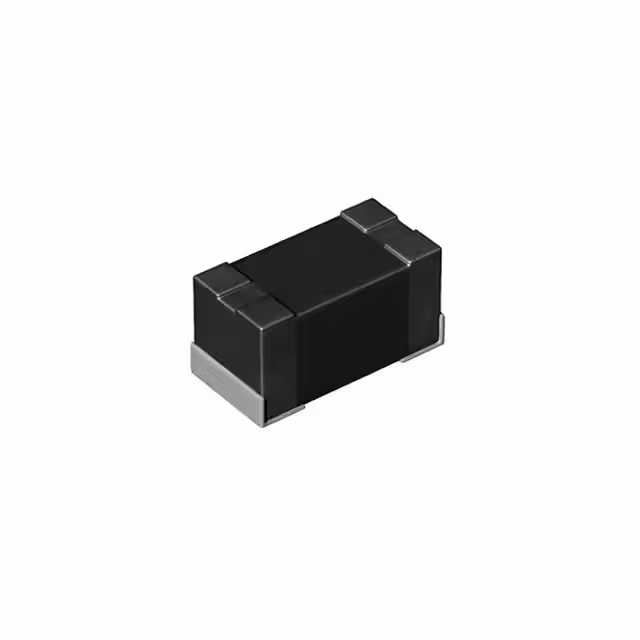

BRL2518T4R7MFIXED IND 4.7UH 470MA 520MOHM SM |
4,019 |
|
Datasheet |
BR, L Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 470 mA | 700mA | Unshielded | 520mOhm Max | - | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|
AISC-1008-R082G-TFIXED IND 82NH 1A 220 MOHM SMD |
3,440 |
|
Datasheet |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 1 A | - | Unshielded | 220mOhm Max | 60 @ 350MHz | 800MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
DFE201610P-R68M=P2FIXED IND 680NH 2.7A 48 MOHM SMD |
4,147 |
|
Datasheet |
DFE201610P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 2.7 A | 3.6A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MBKK1608H1R5MFIXED IND 1.5UH 1A 200 MOHM SMD |
1,412 |
|
Datasheet |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1 A | 650mA | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
