Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9230-92-RCFIXED IND 1MH 38MA 72 OHM TH |
3,401 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 38 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CLF10040T-150M-DFIXED IND 15UH 2.5A 48 MOHM SMD |
2,825 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3.2A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
SPM5030T-2R2MFIXED IND 2.2UH 6.1A 21.23 MOHM |
4,464 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 6.1 A | 4.9A | Shielded | 21.23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
BCL322515RT-6R8M-DINDUCTORS FOR POWER CIRCUITS, AU |
4,847 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.79 A | 1.43A | Shielded | 210mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|
B82479A1683M000FIXED IND 68UH 2.3A 130 MOHM SMD |
1,765 |
|
Datasheet |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

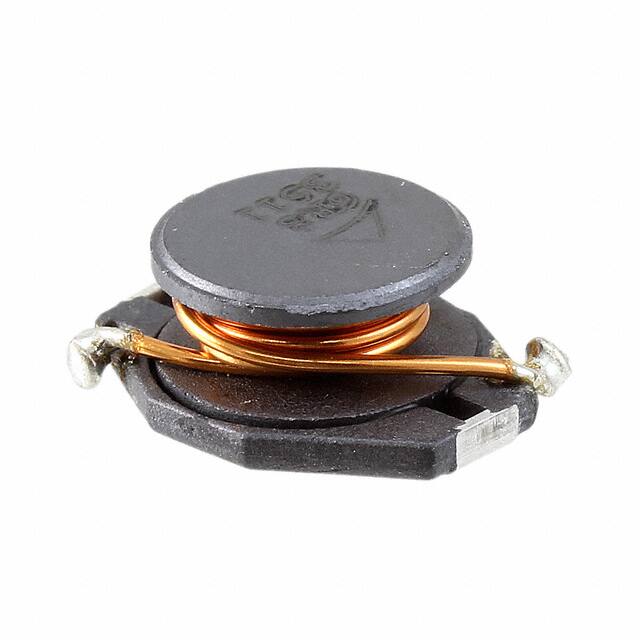

B82476B1682M100FIXED IND 6.8UH 4.8A 21 MOHM SMD |
1,844 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.8 A | 4.6A | Unshielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
SPM5020T-4R7M-LRFIXED IND 4.7UH 3.7A 67.6MOHM SM |
1,678 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 3.7 A | 5.3A | Shielded | 67.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|
AIAP-03-221KFIXED IND 220UH 1.89A 162MOHM TH |
1,857 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 220 µH | ±10% | 1.89 A | - | Unshielded | 162mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-681KFIXED IND 680UH 1.05A 548MOHM TH |
3,254 |
|
Datasheet |
AIAP-03 | Axial | Tray | Active | Wirewound | - | 680 µH | ±10% | 1.05 A | - | Unshielded | 548mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
MWSA1004S-8R2MTFIXED IND 8.2UH 8A 27 MOHM SMD |
1,701 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 8.2 µH | ±20% | 8 A | 9A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLS104T-R68MSFIXED IND 680NH 22A 2.1MOHM SMD |
3,547 |
|
Datasheet |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 22 A | 37A | Shielded | 2.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP1265A-R22MFIXED IND 220NH 53A 0.6 MOHM SMD |
2,523 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 53 A | 112A | Shielded | 0.6mOhm Max | 10 @ 100kHz | 130MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
19R682CFIXED IND 6.8UH 6.7A 11 MOHM TH |
2,602 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 6.8 µH | ±20% | 6.7 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R336CFIXED IND 33MH 130MA 26 OHM TH |
1,299 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 33 mH | ±10% | 130 mA | - | Unshielded | 26Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R475CFIXED IND 4.7MH 350MA 3.5 OHM TH |
1,803 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 4.7 mH | ±10% | 350 mA | - | Unshielded | 3.5Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R473CFIXED IND 47UH 3.4A 38 MOHM TH |
3,671 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 47 µH | ±10% | 3.4 A | - | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R103CFIXED IND 10UH 6A 17 MOHM TH |
1,740 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 10 µH | ±10% | 6 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
SPM4030T-2R2M-HZFIXED IND 2.2UH 2.8A 39.6MOHM SM |
3,769 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 2.8A | Shielded | 39.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
#B953AS-120M=P3FIXED IND 12UH 4A 27 MOHM SMD |
2,600 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4 A | 5A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
RL181S-102J-RCFIXED IND 1MH 90MA 3.4 OHM TH |
2,778 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 90 mA | - | Shielded | 3.4Ohm Max | 70 @ 50kHz | 770kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
