Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPB-203FIXED IND 30UH 7A 19 MOHM TH |
100 |
|
Datasheet |
SPB | - | Bulk | Active | Drum Core, Wirewound | Ferrite | - | - | - | 19.5A | Unshielded | 19mOhm Max | - | 5.03MHz | - | 100°C | - | - | Through Hole | - | 0.720" Dia (18.29mm) | 0.900" (22.86mm) |
|
|
VTP-01005INDUCTOR,LOW COST TOROIDAL POWER |
100 |
|
Datasheet |
- | - | Tape & Box (TB) | Active | Wirewound | Sendust | 10 µH | - | - | 7A | Unshielded | 8mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | - | 1.200" (30.48mm) |
|
PQ108081H-101MHF100.00UH, 20%, 28.50MOHM, 10.30A |
1,179 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 10.5 A | 10.1A | - | 100mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|

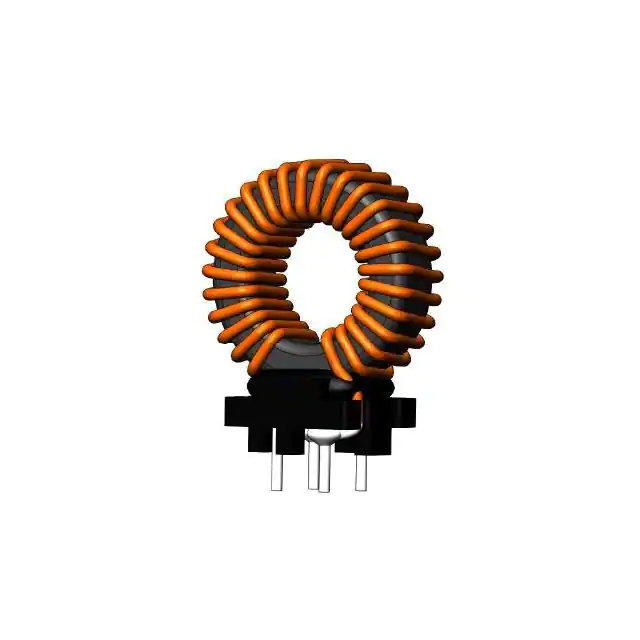

L201314A-102LHF1000.00uH, 15%, 950.00mOhm, 1.1A |
3,729 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 1000 µH | ±15% | 1.1 A | 1A | - | 950mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-301LHF300.00UH, 15%, 170.00MOHM, 2.9A. |
1,636 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 300 µH | ±15% | 2.9 A | 1.8A | - | 170mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-681LHF680.00UH, 15%, 425.00MOHM, 1.7A. |
3,992 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 680 µH | ±15% | 1.7 A | 1.2A | - | 425mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-821LHF820.00UH, 15%, 610.00MOHM, 1.5A. |
2,052 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 820 µH | ±15% | 1.5 A | 1.1A | - | 610mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-251LHF250.00UH, 15%, 112.00MOHM, 3.6A. |
1,284 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 250 µH | ±15% | 3.6 A | 2A | - | 112mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-151LHF150.00UH, 15%, 43.00MOHM, 6.0A. |
3,263 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 150 µH | ±15% | 6 A | 2.6A | - | 43mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-201LHF200.00UH, 15%, 75.00MOHM, 4.5A. |
3,467 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 200 µH | ±15% | 4.5 A | 2.2A | - | 75mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|
|
L201314A-101LHF100.00UH, 15%, 26.00MOHM, 8.0A. |
2,546 |
|
Datasheet |
L201314A | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 100 µH | ±15% | 8 A | 3.2A | - | 26mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.984" L x 0.610" W (25.00mm x 15.50mm) | 1.161" (29.50mm) |
|

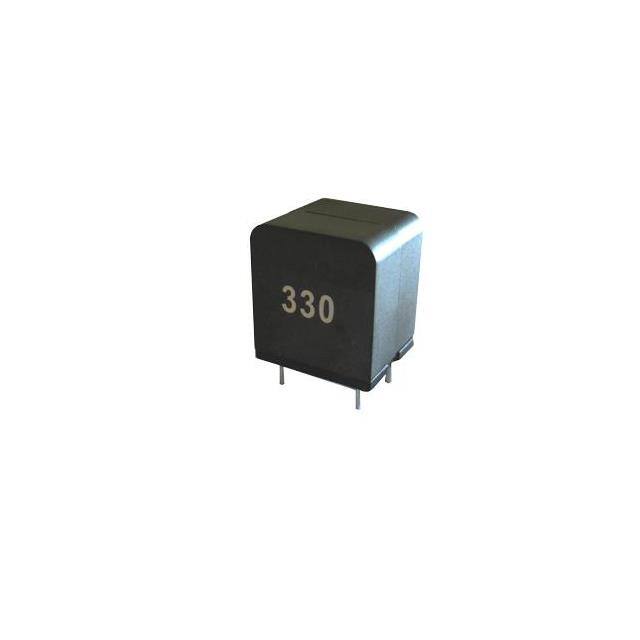

CTDAT1715F-330MSMD SHLD PWR INDUCTOR FOR DIG AM |
1,970 |
|
Datasheet |
CTDAT1715F | Vertical, 4 PC Pin | Bulk | Active | - | - | 33 µH | ±20% | 8.2 A | 8A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
CTDR2F-681K680UH RADIAL DRUM CORE INDUCTOR |
3,627 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 680 µH | ±10% | 1.6 A | - | Unshielded | 430mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-221K220UH RADIAL DRUM CORE INDUCTOR |
2,312 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-331K330UH RADIAL DRUM CORE INDUCTOR |
2,692 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 1.6 A | - | Unshielded | 305mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
VTP-02007INDUCTOR,LOW COST TOROIDAL POWER |
100 |
|
Datasheet |
- | - | Tape & Box (TB) | Active | Wirewound | Sendust | 20 µH | - | - | 12A | Unshielded | 600mOhm Max | - | - | - | - | 100 kHz | - | Through Hole | - | - | 1.150" (29.21mm) |
|
|
VTK-10005INDUCTOR,SENDUST TOROIDAL POWER |
100 |
|
Datasheet |
- | - | Tape & Box (TB) | Active | Wirewound | Sendust | 100 µH | - | - | 10A | Unshielded | 30mOhm Max | - | - | - | - | 10 kHz | - | Through Hole | - | - | 1.700" (43.18mm) |
|
CTDR3F-681K680UH RADIAL DRUM CORE INDUCTOR |
4,401 |
|
Datasheet |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 680 µH | ±10% | - | 2.8A | Unshielded | 256mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
|
CTDR3F-152K1500UH RADIAL DRUM CORE INDUCTOR |
2,422 |
|
Datasheet |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 mH | ±10% | - | 2A | Unshielded | 518mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
|
PFC157181B-101KPFC CHOKE 100.0UH 28.1A 20.0M |
1,035 |
|
Datasheet |
PFC157181B | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 100 µH | ±10% | 14.7 A | 14.7A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.575" L x 0.748" W (40.00mm x 19.00mm) | 1.713" (43.50mm) |
