Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPCE2624A-130MCTHT HIGH CURRENT POWER INDUCTOR |
1,607 |
|
Datasheet |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 13 µH | ±20% | 26 A | 35A | Shielded | 2.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPCE2624A-250MCTHT HIGH CURRENT POWER INDUCTOR |
4,209 |
|
Datasheet |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 25 µH | ±20% | 23 A | 28A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPCE2624A-150MCTHT HIGH CURRENT POWER INDUCTOR |
3,227 |
|
Datasheet |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 25 A | 33A | Shielded | 2.9mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPCE2624A-180MCTHT HIGH CURRENT POWER INDUCTOR |
1,388 |
|
Datasheet |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 24 A | 30A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPEX3222S-300MCTHT HIGH CURRENT POWER INDUCTOR |
3,080 |
|
Datasheet |
CPEX3222S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 30 µH | ±20% | 23 A | 43A | Shielded | 5.52mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222H-7R5MCTHT HIGH CURRENT POWER INDUCTOR |
1,000 |
|
Datasheet |
CPEX3222H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 38 A | 140A | Shielded | 2.08mOhm Max | - | - | - | -55°C ~ 155°C | - | High Saturation, Flat Wire, Low Loss, Low DCR | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222S-4R3MCTHT HIGH CURRENT POWER INDUCTOR |
2,762 |
|
Datasheet |
CPEX3222S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.3 µH | ±20% | 65 A | 115A | Shielded | 0.72mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222H-2R6MCTHT HIGH CURRENT POWER INDUCTOR |
1,810 |
|
Datasheet |
CPEX3222H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.6 µH | ±20% | 65 A | 240A | Shielded | 0.72mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222H-200MCTHT HIGH CURRENT POWER INDUCTOR |
3,763 |
|
Datasheet |
CPEX3222H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 20 µH | ±20% | 23 A | 85A | Shielded | 5.52mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222S-240MCTHT HIGH CURRENT POWER INDUCTOR |
4,386 |
|
Datasheet |
CPEX3222S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 24 µH | ±20% | 27 A | 50A | Shielded | 4.15mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPEX3222S-120MCTHT HIGH CURRENT POWER INDUCTOR |
1,642 |
|
Datasheet |
CPEX3222S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 12 µH | ±20% | 38 A | 70A | Shielded | 2.08mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
|
|
CPCF3222-100MTHT HIGH CURRENT POWER INDUCTOR |
4,957 |
|
Datasheet |
CPCF3222 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 34.2 A | 44.5A | Shielded | 2.08mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.268" L x 0.886" W (32.20mm x 22.50mm) | 1.181" (30.00mm) |
|
|
CPCF3222-180MTHT HIGH CURRENT POWER INDUCTOR |
1,664 |
|
Datasheet |
CPCF3222 | Nonstandard | Tray | Active | Wirewound | Ferrite | 18 µH | ±20% | 24.3 A | 34.6A | Shielded | 4.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.268" L x 0.886" W (32.20mm x 22.50mm) | 1.181" (30.00mm) |
|
|
CPCF3222-3R3MTHT HIGH CURRENT POWER INDUCTOR |
3,703 |
|
Datasheet |
CPCF3222 | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 49.5 A | 89.2A | Shielded | 1.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.268" L x 0.886" W (32.20mm x 22.50mm) | 1.181" (30.00mm) |
|

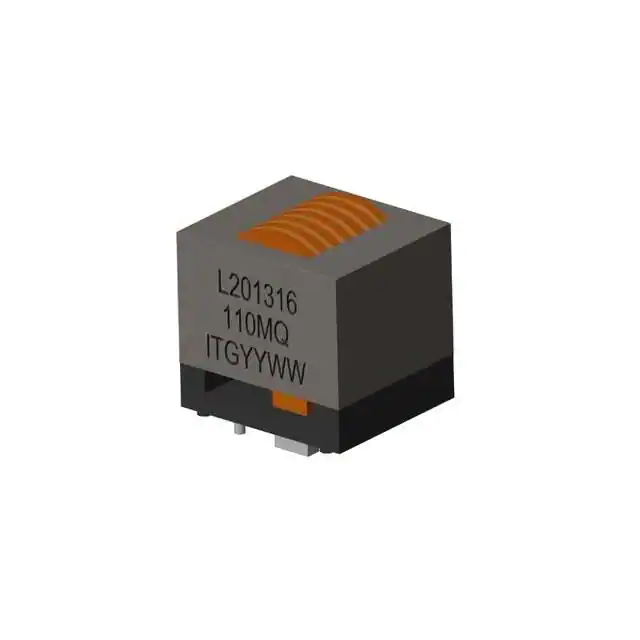

L201316Q-1R0MHF1.0UH, 20%, 0.21MOHM, 98.0A MAX. |
1,494 |
|
Datasheet |
L201316Q | 2-DIP | Tray | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 123 A | 60A | - | 0.21mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 10 kHz | - | Through Hole | 2-DIP | 1.299" L x 0.610" W (33.00mm x 15.50mm) | 1.244" (31.60mm) |
|
|
PFC157181B-251KPFC CHOKE 250.0UH 18.0A 46.5M |
3,835 |
|
Datasheet |
PFC157181B | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 250 µH | ±10% | 9.4 A | 9.4A | Unshielded | 46.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.555" L x 0.728" W (39.50mm x 18.50mm) | 1.693" (43.00mm) |
|
|
PFC157181B-201KPFC CHOKE 200.0UH 20.2A 36.5M |
1,929 |
|
Datasheet |
PFC157181B | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 200 µH | ±10% | 10.7 A | 10.5A | Unshielded | 36.5mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.555" L x 0.728" W (39.50mm x 18.50mm) | 1.693" (43.00mm) |
|
|
PFC157181B-471KPFC CHOKE 470.0UH 13.1A 96.0M |
1,144 |
|
Datasheet |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 470 µH | ±10% | 6.3 A | 6.8A | Unshielded | 96mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.535" L x 0.787" W (39.00mm x 20.00mm) | 1.811" (46.00mm) |
|
|
PFC157181B-561KPFC CHOKE 560.0UH 12.0A 106.0M |
2,931 |
|
Datasheet |
PFC157181B | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 560 µH | ±10% | 6 A | 6.2A | Unshielded | 106mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.516" L x 0.768" W (38.50mm x 19.50mm) | 1.791" (45.50mm) |
|
|
CPEX3222L-470MCTHT HIGH CURRENT POWER INDUCTOR |
2,925 |
|
Datasheet |
CPEX3222L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 47 µH | ±20% | 23 A | 30A | Shielded | 5.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.268" L x 0.874" W (32.20mm x 22.20mm) | 1.181" (30.00mm) |
