Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSHB0421-R68MCFIX IND 0.68UH 8.9A 11.2MOHM SMD |
100 |
|
Datasheet |
VSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 8 A | 8.5A | Shielded | 11.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
VSHB0421-R60MCFIX IND 0.6UH 9.4A 9.3MOHM SMD |
100 |
|
Datasheet |
VSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 600 nH | ±20% | 8.6 A | 9A | Shielded | 9.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|

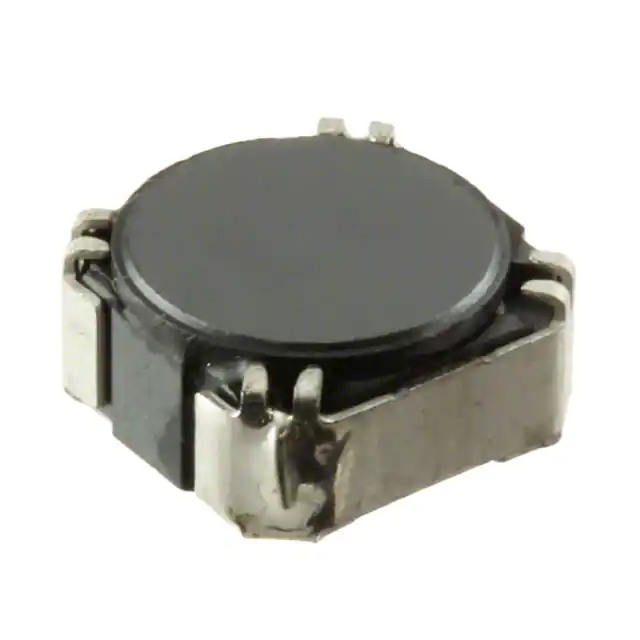

CDRH10D48/ANP-7R2MCFIXED IND 7.2UH 2.9A 29 MOHM SMD |
3,983 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.2 µH | ±20% | 2.9 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.177" (4.50mm) |
|
|
VSHB0421-5R6MCAUTOMOTIVE SMD MOLDING POWER CHK |
1,251 |
|
Datasheet |
VSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 2.9 A | 2.7A | Shielded | 74.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
VSHB0421-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK |
4,101 |
|
Datasheet |
VSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 6.3 A | 5.4A | Shielded | 19.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
VSHB0421-1R0MCAUTOMOTIVE SMD MOLDING POWER CHK |
3,751 |
|
Datasheet |
VSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 7.5 A | 7A | Shielded | 13.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
PAS6420V-722JIND 7200UH 130OHM 15MA |
1,000 |
|
Datasheet |
PAS6420V | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.2 mH | ±10% | 15 mA | - | Unshielded | 130Ohm Max | - | 450kHz | AEC-Q200 | -55°C ~ 125°C | 125 kHz | - | Surface Mount | - | 0.252" L x 0.091" W (6.40mm x 2.30mm) | 0.079" (2.00mm) |
|
ELL-ATV681MFIXED IND 680UH 370MA 1.15OHM SM |
500 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 370 mA | - | Shielded | 1.15Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
0402DC-8N0XGRWFIXED IND 8NH 1.6A 70 MOHM SMD |
2,122 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 8 nH | ±2% | 1.6 A | - | Unshielded | 70mOhm Max | 71 @ 900MHz | 8.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-9N3XGRWFIXED IND 9.3NH 1.5A 73MOHM SMD |
3,030 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 9.3 nH | ±2% | 1.5 A | - | Unshielded | 73mOhm Max | 71 @ 900MHz | 8.24GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
|
0402DC-3N2XGRWFIXED IND 3.2NH 2.1A 37MOHM SMD |
3,952 |
|
Datasheet |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 3.2 nH | ±2% | 2.1 A | - | Unshielded | 37mOhm Max | 65 @ 900MHz | 14.75GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
CLF10060NIT-221M-DFIXED IND 220UH 850MA 420MOHM SM |
3,869 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 850 mA | 850mA | Shielded | 420mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
SBC9-1R5-942FIXED IND 1.5UH 9.4A 10 MOHM TH |
3,595 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.4 A | 25.4A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
P1167.823NLTFIXED IND 82UH 700MA 350MOHM SMD |
2,538 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 700 mA | 700mA | Shielded | 350mOhm Max | - | 8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
LPA1226-500KLFIXED IND 50UH 3A 80 MOHM TH |
2,116 |
|
Datasheet |
LPA | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.472" Dia x 0.984" L (12.00mm x 25.00mm) | - |
|
RFC0807BV-474KEFIXED INDUCTOR 470UH SMD |
100 |
|
Datasheet |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 470 µH | ±10% | 400 mA | 1.1A | Unshielded | 1.65Ohm Max | - | 2.9MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-184KEFIXED INDUCTOR 180UH SMD |
4,934 |
|
Datasheet |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 180 µH | ±10% | 650 mA | 1.7A | Unshielded | 640mOhm Max | - | 4.4MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-124KEFIXED INDUCTOR 120UH SMD |
2,521 |
|
Datasheet |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 120 µH | ±10% | 700 mA | 2.12A | Unshielded | 486mOhm Max | - | 6.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-154KEFIXED INDUCTOR 150UH SMD |
2,934 |
|
Datasheet |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 150 µH | ±10% | 680 mA | 1.93A | Unshielded | 560mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-104KEFIXED INDUCTOR 100UH SMD |
2,326 |
|
Datasheet |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 100 µH | ±10% | 750 mA | 2.34A | Unshielded | 440mOhm Max | - | 7.1MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
