Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

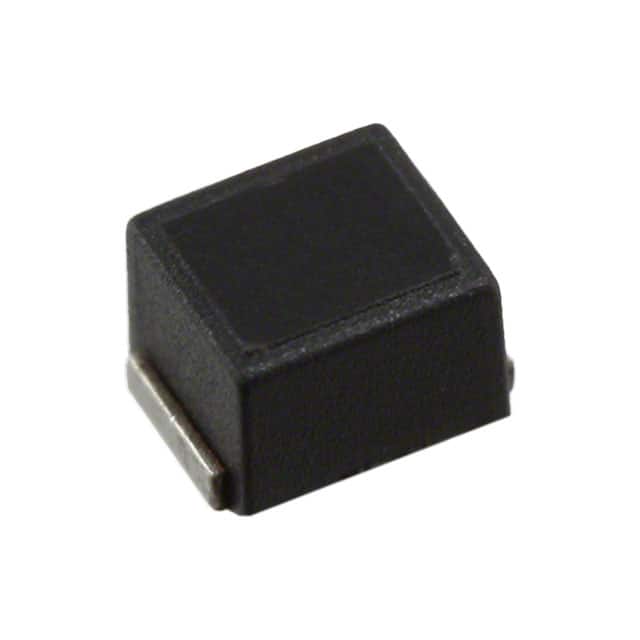

FSLM2520-R15J=P2FIXED IND 150NH 500MA 250 MOHM |
410 |
|
Datasheet |
LLM2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 150 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 530MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|
ATNR30102R2MTSMD POWER INDUCTORS 3010 2.2UH 2 |
1,000 |
|
Datasheet |
ATNR | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 1.3 A | 1.3A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ATNR30104R7MTSMD POWER INDUCTORS 3010 4.7UH 2 |
995 |
|
Datasheet |
ATNR | 1212 (3030 Metric) | Cut Tape (CT) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 0.9 A | 1.1A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
PCS125MT180FIXED IND 18UH 3A 34 MOHM SMD |
800 |
|
Datasheet |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 3 A | - | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
HFI-160808-R15JFIXED IND 150NH 300MA 1.2 OHM |
430 |
|
Datasheet |
HFI-160808 | 0603 (1608 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 150 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 500MHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
MLF1608E8R2MFIXED IND 8.2UH 10MA 1.5 OHM SMD |
109 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±20% | 10 mA | - | Shielded | 1.5Ohm Max | 35 @ 4MHz | - | - | -40°C ~ 85°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AISC-1210-22NJ-TFIXED IND 22NH 1A 100 MOHM SMD |
3,011 |
|
Datasheet |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 50 @ 300MHz | 2.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
|
HPC 8040NV-220MFIXED IND 22UH 2.45A 0.073OHM SM |
1,000 |
|
Datasheet |
HPC-BMV/NV | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.45 A | 2.8A | Shielded | 73mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
L0603CR50MDMITFIXED IND 500NH 900MA 150MOHM SM |
716 |
|
Datasheet |
L-DMI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 500 nH | ±20% | 900 mA | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
-1,80mm.jpg)
|
LBC2016T4R7MFIXED IND 4.7UH 355MA 370MOHM SM |
408 |
|
Datasheet |
LB, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 355 mA | - | Unshielded | 370mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
ATNR5040M4R7MTSMD POWER INDUCTORS 5040 4.7UH 2 |
266 |
|
Datasheet |
ATNR_M | 2020 (5050 Metric) | Cut Tape (CT) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 3.2 A | 4.2A | Shielded | 30mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
PTL2012-F2N2CINDUCTOR PHOTOLITHOGRAPHIC 2.2NH |
541 |
|
Datasheet |
PTL2012F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
|
MHQ0603P0N7BTD25FIXED IND 0.7NH 1A 70 MOHM SMD |
222 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.7 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P20NHTD25FIXED IND 20NH 160MA 2 OHM SMD |
190 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 20 nH | ±3% | 160 mA | - | Unshielded | 2Ohm Max | 16 @ 500MHz | 2.4GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
.jpg)
|
36401E2N7ATDFFIXED IND 2.7NH 440MA 350MOHM SM |
1,000 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.7 nH | ±0.2nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
MLK0603L2N2ST000FIXED IND 2.2NH 300MA 300MOHM SM |
976 |
|
Datasheet |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 300mOhm Max | 6 @ 300MHz | 9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HPC 5040NF-2R2M2.2 UH SHIELDED DRUM CORE, WIREW |
890 |
|
Datasheet |
HPC5040NF | Nonstandard | Cut Tape (CT) | Active | Wirewound | - | 2.2 µH | ±20% | 3.8 A | 5.7A | Shielded | 21mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
FSLU2520-39NKP2INDUCTOR .039UH 10% TYP FSLU SMD |
774 |
|
Datasheet |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
MLK0603L1N8ST000FIXED IND 1.8NH 300MA 270MOHM SM |
548 |
|
Datasheet |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 270mOhm Max | 6 @ 300MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
AMPI0630ED100MTSMD POWER INDUCTORS 0630 10UH 20 |
392 |
|
Datasheet |
AMPI_ED | Nonstandard | Cut Tape (CT) | Active | - | Metal | 10 µH | ±20% | 4 A | 5.5A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
