Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLE104T-2R2MSIND SMD 2.2UH MOLDING CHOKE |
500 |
|
Datasheet |
CMLE104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 16 A | 21A | Unshielded | 6.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLE104T-1R0MSIND SMD 1.0UH MOLDING CHOKE |
500 |
|
Datasheet |
CMLE104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 22.5 A | 28A | Unshielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLE104T-R22MSIND SMD 0.22UH MOLDING CHOKE |
500 |
|
Datasheet |
CMLE104T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 45 A | 66A | Unshielded | 0.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLE104T-R47MSIND SMD 0.47UH MOLDING CHOKE |
500 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASPIAIG-F6060-6R8M-TFIXED IND 6.8UH 8.7A 20.8 MOHM |
760 |
|
Datasheet |
ASPIAIG-F6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 9 A | 8.7A | Shielded | 20.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6060 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
PM104SH-470-RCFIXED IND 47UH 1.65A 121MOHM SMD |
1,000 |
|
Datasheet |
PM104SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.65 A | 1.6A | Shielded | 121mOhm Max | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
19R685CFIXED IND 6.8MH 290MA 5.7 OHM TH |
3,996 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 6.8 mH | ±10% | 290 mA | - | Unshielded | 5.7Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R224CFIXED IND 220UH 1.6A 162MOHM TH |
4,655 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 220 µH | ±10% | 1.6 A | - | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R334CFIXED IND 330UH 1.34A 240MOHM TH |
2,064 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 330 µH | ±10% | 1.34 A | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
19R223CFIXED IND 22UH 4A 26 MOHM TH |
1,236 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 22 µH | ±10% | 4 A | - | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
|
7447480680WE-TI RADIAL LEADED WIRE WOUND I |
2,807 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±10% | 2.9 A | 3.5A | Unshielded | 80mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
HCUVE66-101IND SMD 100NH ASSEMBLY CHOKE |
800 |
|
Datasheet |
HCUVE66 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±10% | 50 A | 30A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.215" W (5.21mm x 5.46mm) | 0.236" (6.00mm) |
|
|
HCUVE66-221IND SMD 220NH ASSEMBLY CHOKE |
800 |
|
Datasheet |
HCUVE66 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±10% | 50 A | 11A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.215" W (5.21mm x 5.46mm) | 0.236" (6.00mm) |
|
|
HCUVE66-151IND SMD 150NH ASSEMBLY CHOKE |
800 |
|
Datasheet |
HCUVE66 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±10% | 50 A | 18A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.215" W (5.21mm x 5.46mm) | 0.236" (6.00mm) |
|
|
HCUVE66-121IND SMD 120NH ASSEMBLY CHOKE |
800 |
|
Datasheet |
HCUVE66 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 120 nH | ±10% | 50 A | 24A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.215" W (5.21mm x 5.46mm) | 0.236" (6.00mm) |
|

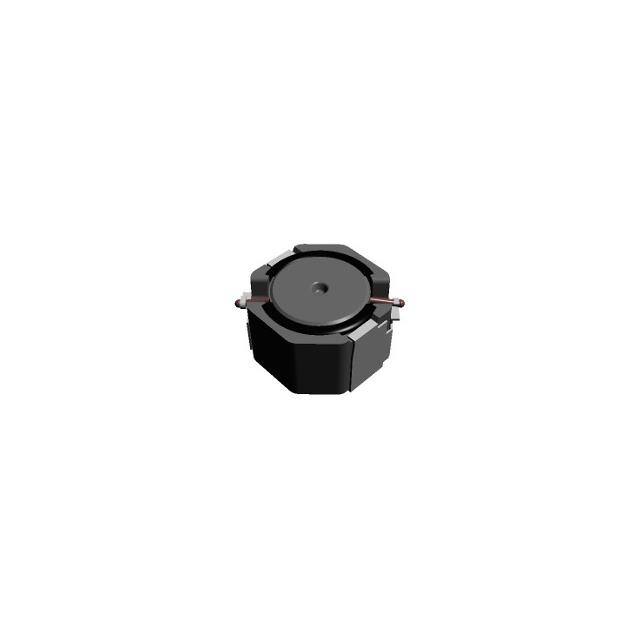

LAYPH10060DL4R7NGAFIXED IND 4.7UH 5.5A 14MOHM SMD |
500 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 4.2 A | 5.8A | Shielded | 11mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL470MGAFIXED IND 47UH 2.1A 98 MOHM SMD |
500 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 2.1A | Shielded | 82mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL220MGAFIXED IND 22UH 2.8A 53 MOHM SMD |
500 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.1 A | 3.1A | Shielded | 44mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL3R3NGAFIXED IND 3.3UH 6.5A 12MOHM SMD |
500 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 4.7 A | 7A | Shielded | 9mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL330MGAFIXED IND 33UH 2.4A 73 MOHM SMD |
500 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 2.4A | Shielded | 61mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
