Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720702WE-TI RADIAL LEADED WIRE WOUND I |
2,314 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 7 mH | ±5% | 170 mA | 180mA | Unshielded | 16Ohm Max | - | 710kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
5300-36-RCFIXED IND 820UH 170MA 7.1 OHM TH |
1,000 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 170 mA | 100mA | Unshielded | 7.1Ohm Max | - | 1.1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
VCTA25201B-100MS6IND SMD 10.0UH AUTO GRADE CHOKE |
695 |
|
Datasheet |
VCTA25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 800 mA | 1.3A | Unshielded | 530mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDR6603-102MFIXED IND 1MH 70MA 13.8 OHM SMD |
600 |
|
Datasheet |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | 71 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDR6603-330MFIXED IND 33UH 600MA 510MOHM SMD |
575 |
|
Datasheet |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 600 mA | 580mA | Unshielded | 510mOhm Max | 24 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
EXL1V0603-R56-RFIXED IND 560NH 22A 3.31MOHM SMD |
1,000 |
|
Datasheet |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 22 A | 25A | Shielded | 3.31mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
SRR0905-270MFIXED IND 27UH 1.3A 100 MOHM SMD |
801 |
|
Datasheet |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.3 A | - | Shielded | 100mOhm Max | 35 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" Dia (9.90mm) | 0.189" (4.80mm) |
|
|
SRR0905-220MFIXED IND 22UH 1.4A 80 MOHM SMD |
800 |
|
Datasheet |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | - | Shielded | 80mOhm Max | 35 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" Dia (9.90mm) | 0.189" (4.80mm) |
|
BMMA001010401R0MX2INDUCTOR POWER |
500 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18 A | 28A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
BMMA00101040R22MX2INDUCTOR POWER |
500 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 35 A | 60A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRR0905-101KFIXED IND 100UH 720MA 340MOHM SM |
1,965 |
|
Datasheet |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | - | Shielded | 340mOhm Max | 29 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" Dia (9.90mm) | 0.189" (4.80mm) |
|
LAYPH06045DL4R7NGAFIXED IND 4.7UH 3.4A 20 MOHM SMD |
1,000 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 2.3 A | 3.1A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

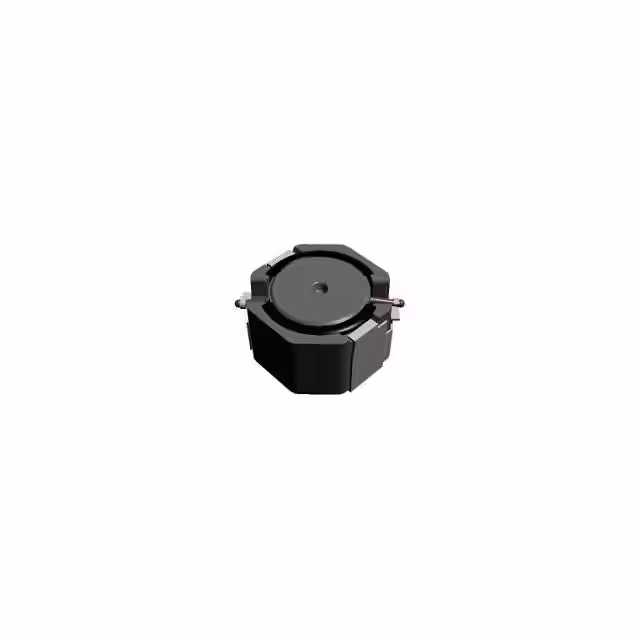

LAYPH06045DL470MGAFIXED IND 47UH 1.4A 135 MOHM SMD |
1,000 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 850 mA | 850mA | Shielded | 162mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
SRR5228A-680MIND 68UH 0.9A SHLD |
400 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±20% | 650 mA | 570mA | Shielded | 550mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
|
SRR5228A-3R3YIND 3.3UH 3.6A SHLD |
400 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.3A | Shielded | 32mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
|
SRR5228A-181MIND 180UH 0.52A SHLD |
400 |
|
Datasheet |
SRR5228A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±20% | 400 mA | 350mA | Shielded | 1.55Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.126" (3.20mm) |
|
ASPI-0804T-681M-TFIXED IND 680UH 400MA 2.02OHM SM |
2,000 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | - | Unshielded | 2.02Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-100M-TFIXED IND 10UH 3.8A 38 MOHM SMD |
1,000 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | - | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-101M-TFIXED IND 100UH 1.2A 280MOHM SMD |
1,000 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | - | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
LAYPH06045DL1R0NGAFIXED IND 1UH 5.2A 9 MOHM SMD |
1,000 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 3.5 A | 6.7A | Shielded | 9mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
