Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19R153CFIXED IND 15UH 4.8A 22 MOHM TH |
2,789 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 15 µH | ±10% | 4.8 A | - | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|

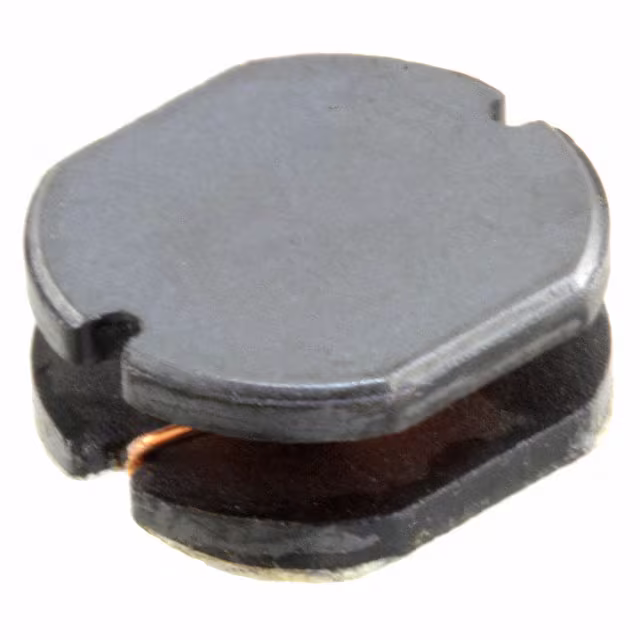

CD104NP-100MCFIXED IND 10UH 2.38A 53 MOHM SMD |
1,846 |
|
Datasheet |
CD104 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.38 A | - | Unshielded | 53mOhm Max | - | 29.9MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.177" (4.50mm) |
|
#B953AS-1R7N=P3FIXED IND 1.7UH 7.7A 10 MOHM SMD |
4,901 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.7 µH | ±30% | 7.7 A | 11.8A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
|
ASPI-1306S-100M-TFIXED IND 10UH 3.9A 40 MOHM SMD |
4,025 |
|
Datasheet |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 8A | Shielded | 40mOhm Max | - | 8MHz | - | -40°C ~ 85°C | 200 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
ASPI-1306T-220M-TFIXED IND 22UH 3.5A 47 MOHM SMD |
513 |
|
Datasheet |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.5 A | 7A | Unshielded | 47mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
SPM5030T-R68M-HZFIXED IND 680NH 13.6A 7.37 MOHM |
506 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 13.6 A | 6.6A | Shielded | 7.37mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
IFLR5151HZERR44M01FIXED IND 440NH 50A 0.35MOHM SMD |
2,418 |
|
Datasheet |
IFLR-5151HZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 440 nH | ±20% | 50 A | 35A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.315" (8.00mm) |
|
7447211332FIXED IND 3.3MH 370MA 3.6 OHM TH |
1,154 |
|
Datasheet |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 370 mA | 520mA | Unshielded | 3.6Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
|
7447211472FIXED IND 4.7MH 310MA 5.1 OHM TH |
1,295 |
|
Datasheet |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 310 mA | 430mA | Unshielded | 5.1Ohm Max | - | 410kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
7447452472FIXED IND 4.7MH 230MA 7 OHM TH |
2,453 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 230 mA | 200mA | Unshielded | 7Ohm Max | - | 550kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
7447211101FIXED IND 100UH 2.2A 115 MOHM TH |
4,455 |
|
Datasheet |
WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 100 µH | ±10% | 2.2 A | 2.8A | Unshielded | 115mOhm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
PA2607.181AHLFIXED IND 175NH 41A 0.29MOHM SMD |
4,312 |
|
Datasheet |
PA2607AHL | Nonstandard | Tray | Active | - | - | 175 nH | ±15% | 41 A | 62A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.291" (7.40mm) |
|
IHLE4040DDEW6R8M5AFIXED IND 6.8UH 9.1A 0.02236OHM |
550 |
|
Datasheet |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 9.1 A | 9A | Shielded | 22.36mOhm Max | - | 16.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
|
IHLE4040DDEW680M5AFIXED IND 68UH 2.4A 0.252OHM SMD |
509 |
|
Datasheet |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 2.4 A | 3.5A | Shielded | 252mOhm Max | - | 4.02MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
EST1060T1R0NDGAFIXED IND 1UH 9A 6 MOHM SMD |
500 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 9 A | 9.7A | Shielded | 6mOhm Max | - | 142MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
MWLA1004S-330MTFIXED IND 33UH 112MOHM 5000MA |
1,401 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
B82477P2333M000FIXED IND 33UH 2.7A 55 MOHM SMD |
631 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 2.2A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
MWSA1265S-4R7MTFIXED IND 4.7UH 8.5 MOHM SMD |
500 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | - | - | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
MWSA1206S-1R5MTFIXED IND 1.5UH 2.9 MOHM SMD |
500 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | - | - | Shielded | 2.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
|
MWSA1204S-1R0MTFIXED IND 1UH 24A 7.5 MOHM SMD |
500 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 24 A | 35A | Shielded | 7.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.504" W (13.45mm x 12.80mm) | 0.157" (4.00mm) |
