Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL5050HC-R56MFIXED IND 0.56UH 24A 2.9 MOHM S |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Active | Molded | - | 0.56 µH | ±20% | - | - | Shielded | 2.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|

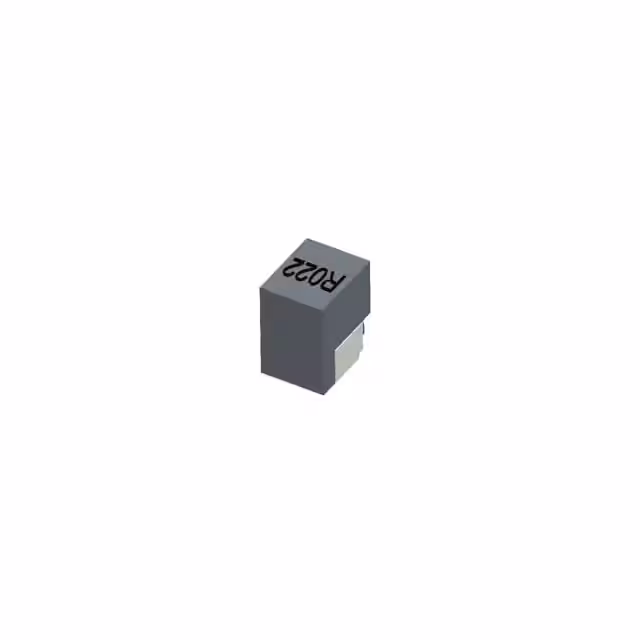

SLC1611A-R022MHF0.022UH, 20%, 0.23MOHM, 41AMP MA |
2,400 |
|
Datasheet |
SLC1611 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 20 nH | ±20% | 22 A | 41A | - | 0.23mOhm | - | - | - | -55°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
SLC1615A-R022LHF22.0NH, 10%, 0.23MOHM, 60.0A MAX |
400 |
|
Datasheet |
SLC1615 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 22 nH | ±10% | 22 A | 60A | - | 0.23mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.154" (3.90mm) |
|
XGL5020-901MECFIXED INDUCTOR 0.9UH SMD |
5,288 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 900 nH | ±20% | 11.4 A | 11.8A | Shielded | 8mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-182MECFIXED INDUCTOR 1.8UH SMD |
5,190 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 1.8 µH | ±20% | 8.6 A | 8.3A | Shielded | 16.5mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-562MECFIXED INDUCTOR 5.6UH SMD |
4,650 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 5.6 µH | ±20% | 4.3 A | 4.9A | Shielded | 52mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-821MECFIXED INDUCTOR 0.82UH SMD |
4,381 |
|
Datasheet |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 820 nH | ±20% | 12.4 A | 12.3A | Shielded | 6.8mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
CT920CYF-220MSMD SHIELDED POWER INDUCTOR |
2,011 |
|
Datasheet |
ct920cyf | - | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | - | - | 160mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT920CYF-390MSMD SHIELDED POWER INDUCTOR |
2,002 |
|
Datasheet |
ct920cyf | - | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | - | - | - | 280mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT920CYF-3R3NSMD SHIELDED POWER INDUCTOR |
2,000 |
|
Datasheet |
ct920cyf | - | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±30% | - | - | - | 38mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTM2474F-822L8200UH AXIAL MOLDED INDUCTOR |
150 |
|
Datasheet |
CTM2474F | Axial | Bulk | Active | Molded | - | 8.2 mH | ±15% | 130 mA | 70mA | Unshielded | 20.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
CTS1F-151K150UH AXL MOLDED SHLD INDUCTOR |
500 |
|
Datasheet |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | 150 µH | ±10% | 173 mA | - | Shielded | 5.9Ohm Max | 60 @ 790kHz | 9.1MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - |
|
XGL5030-901MECPOWER INDUCTOR, SHIELDED, COMPOS |
2,314 |
|
Datasheet |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 900 nH | ±20% | 19.7 A | 14.5A | Shielded | 5.2mOhm Max | - | 54MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|
|
XFHCL5050HC-220MFIXED IND 22UH 4.5A 79.5 MOHM SM |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Obsolete | Molded | - | 22 µH | ±20% | - | - | Shielded | 79.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-6R8MFIXED IND 6.8UH 7A 23 MOHM SMD |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | - | - | Shielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-5R6MFIXED IND 5.6UH 7.5A 19.3 MOHM |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | - | - | Shielded | 19.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-120MFIXED IND 12UH 5.2A 43 MOHM SMD |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Obsolete | Molded | - | 12 µH | ±20% | - | - | Shielded | 43mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-100MFIXED IND 10UH 5.6A 33 MOHM SMD |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | - | - | Shielded | 33mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-150MFIXED IND 15UH 4.7A 55 MOHM SMD |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | - | - | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
|
XFHCL5050HC-4R7MFIXED IND 4.7UH 8.5A 16 MOHM SM |
1,500 |
|
Datasheet |
XFHCL5050HC | - | Tape & Reel (TR) | Active | Molded | - | 43.7 µH | ±20% | - | - | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
