Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWSIHH131305-R33L-R15FIXED IND 330NH 50A 0.16mOhm SMD |
500 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±15% | 50 A | 26A | Shielded | 0.155mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.500" W (13.00mm x 12.70mm) | 0.217" (5.50mm) |
|
|
AWSIHH131305-R40L-R15FIXED IND 400NH 50A 0.16mOhm SMD |
500 |
|
Datasheet |
AWSIHH | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 400 nH | ±15% | 50 A | 20A | Shielded | 0.155mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.500" W (13.00mm x 12.70mm) | 0.217" (5.50mm) |
|
|
NPIM177PA470MTRQYFIND SMT 17.6X16.9X6.7047UH8.7A |
400 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | - | - | 16A | Shielded | 55mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | - | High Current | - | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.264" (6.70mm) |
|
SQ4120-R90MHF0.90UH, 0.95MOHM, 14.5A MAX. FLA |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±20% | 23 A | 14.5A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-R72MHF0.72UH, 0.95MOHM, 19A MAX. FLAT |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 720 nH | ±20% | 23 A | 19A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-R62MHF0.62UH, 0.95MOHM, 23A MAX. FLAT |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 650 nH | ±20% | 23 A | 23A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-1R2MHF1.2UH, 0.95MOHM, 10A MAX. FLAT W |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 23 A | 10A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-1R0MHF1.0UH, 0.95MOHM, 12.5A MAX. FLAT |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 23 A | 12.5A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
|
SQ4120-R82MHF0.82UH, 0.95MOHM, 15A MAX. FLAT |
250 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 23 A | 15A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|
CTSD10F-4R7M4.7UH SMD SHLDED POWER INDUCTOR |
2,333 |
|
Datasheet |
CTSD10F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | - | 1.08A | Shielded | 191.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|

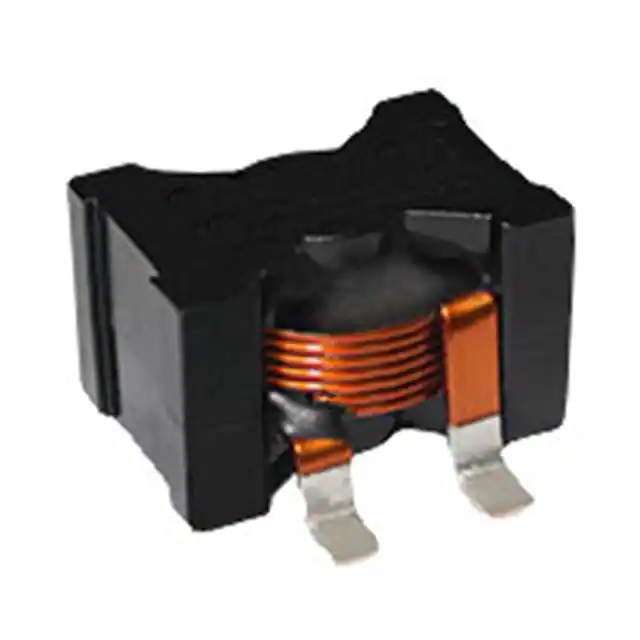

MTP2915150ML01INDUCTANCE 15 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 30 A | 16A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP2915220ML01INDUCTANCE 22 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 30 A | 10A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP2915270ML01INDUCTANCE 27 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 30 A | 8A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP2915100ML01INDUCTANCE 10 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 30 A | 28A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP29153R3ML01INDUCTANCE 3.3 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 30 A | 60A | Unshielded | 2.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP29156R8ML01INDUCTANCE 27 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 30 A | 40A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
|
MTP29152R2ML01INDUCTANCE 2.2 H TOL 20% |
320 |
|
Datasheet |
MTP2915 | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 30 A | 60A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.748" W (28.00mm x 19.00mm) | 0.610" (15.50mm) |
|
CTDO3316PF-684680UH SMD UNSHLD POWER INDUCTOR |
4,232 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2Ohm | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-334330UH SMD UNSHLD POWER INDUCTOR |
4,007 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 1Ohm | - | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-474470UH SMD UNSHLD POWER INDUCTOR |
3,987 |
|
Datasheet |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 500 mA | 500mA | Unshielded | 1.3Ohm | - | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
