Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHNR4030-470M-00000FIXED IND 47UH 720MA 579 MOHM SM |
10,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 720 mA | 950mA | Shielded | 579mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-330M-00000FIXED IND 33UH 840MA 429 MOHM SM |
10,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 840 mA | 1.1A | Shielded | 429mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-101M-00000FIXED IND 100UH 450MA 1.495 OHM |
10,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.495Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-560M-00000FIXED IND 56UH 650MA 722 MOHM SM |
10,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 650 mA | 850mA | Shielded | 722mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
WB0402T19NSJWW IND 0402 19NH 5% |
56,000 |
|
Datasheet |
WB | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 19 nH | ±5% | 400 mA | - | Unshielded | 200mOhm Max | 24 @ 250MHz | 3.04GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
WB0603TR39SJWW IND 0603 390NH 5% |
16,000 |
|
Datasheet |
WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 100 mA | - | Unshielded | 4.35Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
CTTF0402F-12NJFIXED IND 12NH5% SMD |
40,000 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 12 nH | ±5% | 180 mA | - | Unshielded | 1.6Ohm Max | 13 @ 500MHz | 3.7GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-1N2BFIXED IND 1.2NH0.1NH SMD |
20,000 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-0N8BFIXED IND 0.8NH0.1NH SMD |
10,000 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.8 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
NPIS48LP220MTRFIND SMT 4.0X4.0X1.8 22UH 700MA 0 |
57,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 900mA | Shielded | 290mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.070" (1.80mm) |
|
|
CHNR5040-680M-00000FIXED IND 68UH 800MA 520 MOHM SM |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 800 mA | 900mA | Shielded | 520mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-330M-00000FIXED IND 33UH 1.2A 244 MOHM SMD |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 244mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-101M-00000FIXED IND 100UH 700mA 728 MOHM |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 700 mA | 750mA | Shielded | 728mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-560M-00000FIXED IND 56UH 800MA 494 MOHM SM |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 800 mA | 1A | Shielded | 494mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-470M-00000FIXED IND 47UH 1A 354 MOHM SMD |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1 A | 1.1A | Shielded | 354mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-151M-00000FIXED IND 150UH 600MA 975 MOHM S |
9,000 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 600 mA | 650mA | Shielded | 975mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
WRFI1206-S-27NJTWirewound RF Inductor,1206,27nH, |
38,000 |
|
Datasheet |
WRFI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 110mOhm | 50 @ 300MHz | 1.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1206 | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
|
WRFI1206-S-56NJTWirewound RF Inductor,1206,56nH, |
38,000 |
|
Datasheet |
WRFI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 140mOhm | 55 @ 300MHz | 1.45GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1206 | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|

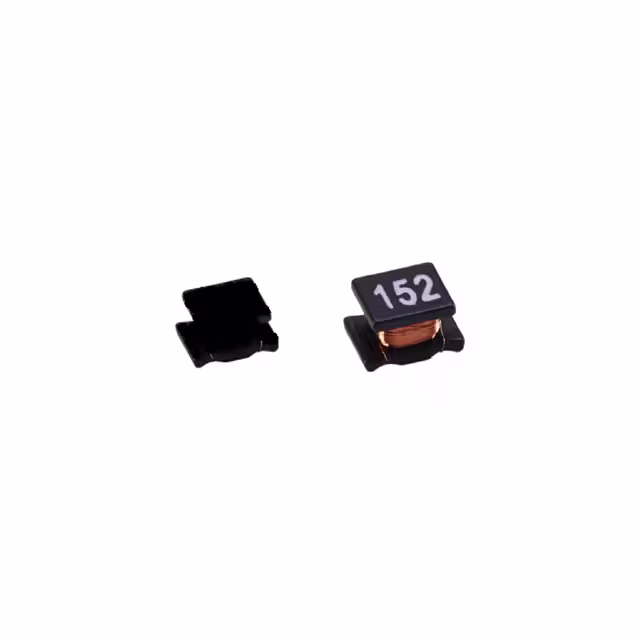

VLH322515-2R2MFIXED IND 2.2UH 790MA 126MOHM SM |
2,000 |
|
Datasheet |
VLH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 126mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|

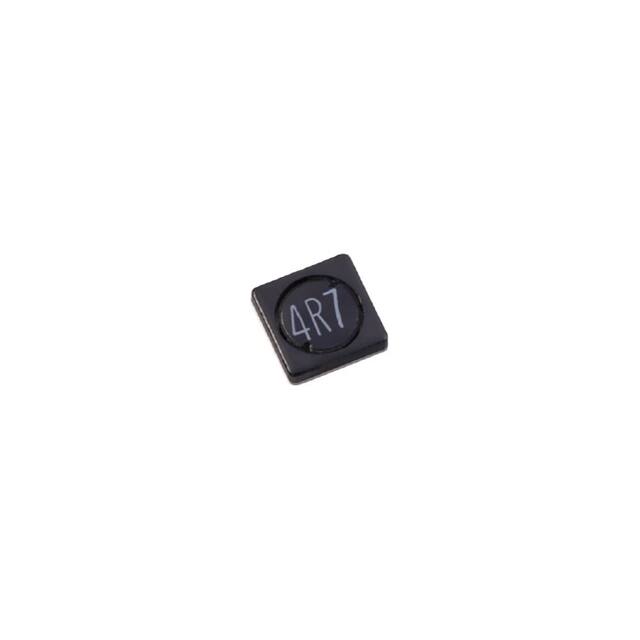

PCF4020NT4R7FIXED IND 4.7UH 1.1A 146MOHM SMD |
10,500 |
|
Datasheet |
PCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.1 A | - | Shielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
