Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812PS-333KRCFIXED IND 33UH 1.1A 400MOHM SM |
5,822 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 33 µH | ±10% | 1.1 A | 460mA | Shielded | 400mOhm Max | 40 @ 1MHz | 30MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|

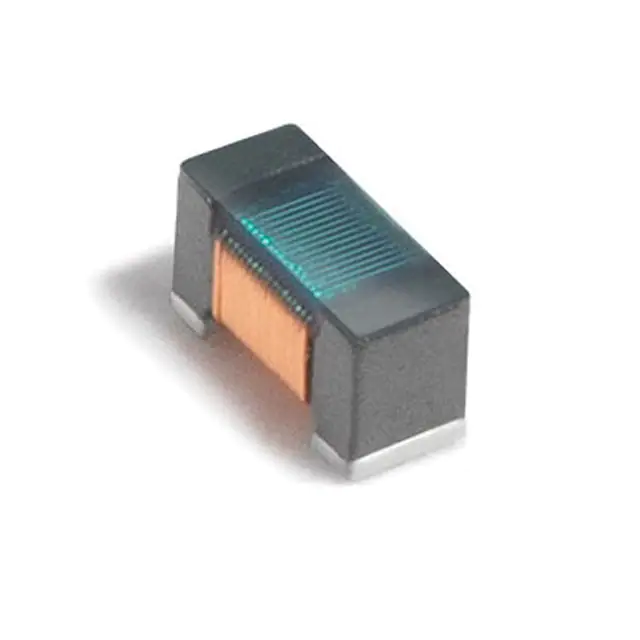

0402DF-181XJRWFIXED IND 180NH 730MA 172MOHM SM |
5,680 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 180 nH | ±5% | 730 mA | - | Unshielded | 172mOhm Max | - | 1.68GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-771XJRWFIXED IND 770NH 220MA 1.35OHM SM |
4,923 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 770 nH | ±5% | 220 mA | - | Unshielded | 1.35Ohm Max | - | 585MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-221XJRWFIXED IND 220NH 600MA 240MOHM SM |
4,883 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 220 nH | ±5% | 600 mA | - | Unshielded | 240mOhm Max | - | 1.56GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-901XJRWFIXED IND 900NH 230MA 1.5OHM SMD |
3,718 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 900 nH | ±5% | 230 mA | - | Unshielded | 1.5Ohm Max | - | 760MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-102KRCFIXED IND 1UH 2.7A 50MOHM SM |
3,558 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 1 µH | ±10% | 2.7 A | 2.5A | Shielded | 50mOhm Max | 35 @ 1MHz | 685MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-332XJRWFIXED IND 3.3UH 150MA 2.2OHM SMD |
2,965 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 3.3 µH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-701XJRWFIXED IND 700NH 230MA 1.3OHM SMD |
2,617 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 700 nH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-770XJRWFIXED IND 77NH 1.1A 72 MOHM SMD |
2,515 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 77 nH | ±5% | 1.1 A | - | Unshielded | 72mOhm Max | - | 2.05GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-200XJRWFIXED IND 20NH 1.4A 49 MOHM SMD |
2,332 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 20 nH | ±5% | 1.4 A | - | Unshielded | 49mOhm Max | - | 2.95GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-101XJRWFIXED IND 105NH 850MA 104MOHM SM |
2,291 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 105 nH | ±5% | 850 mA | - | Unshielded | 104mOhm Max | - | 1.66GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-361XJRWFIXED IND 360NH 420MA 475MOHM SM |
2,164 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 360 nH | ±5% | 420 mA | - | Unshielded | 475mOhm Max | - | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-531XJRWFIXED IND 530NH 330MA 715MOHM SM |
1,956 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 530 nH | ±5% | 330 mA | - | Unshielded | 715mOhm Max | - | 1GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-332KRCFIXED IND 3.3UH 2.3A 90MOHM SM |
1,946 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 3.3 µH | ±10% | 2.3 A | 1.4A | Shielded | 90mOhm Max | 40 @ 1MHz | 225MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-331XJRWFIXED IND 330NH 430MA 435MOHM SM |
1,662 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 330 nH | ±5% | 430 mA | - | Unshielded | 435mOhm Max | - | 1.34GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-360XJRWFIXED IND 36NH 1.3A 55 MOHM SMD |
1,656 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 36 nH | ±5% | 1.3 A | - | Unshielded | 55mOhm Max | - | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-300XJRWFIXED IND 30NH 1.3A 55 MOHM SMD |
1,622 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 30 nH | ±5% | 1.3 A | - | Unshielded | 55mOhm Max | - | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-153KRCFIXED IND 15UH 1.45A 260MOHM SM |
1,582 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 15 µH | ±10% | 1.45 A | 700mA | Shielded | 260mOhm Max | 40 @ 1MHz | 100MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-141XJRWFIXED IND 140NH 750MA 141MOHM SM |
1,486 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 140 nH | ±5% | 750 mA | - | Unshielded | 141mOhm Max | - | 1.45GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-222KRCFIXED IND 2.2UH 2.4A 70MOHM SM |
1,389 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 2.2 µH | ±10% | 2.4 A | 1.7A | Shielded | 70mOhm Max | 38 @ 1MHz | 270MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
