Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805CS-682XGRCFIXED IND 6.8UH 80MA 9.8OHM SM |
2,533 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.8 µH | ±2% | 80 mA | - | Unshielded | 9.8Ohm Max | 20 @ 10MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-472XGRCFIXED IND 4.7UH 80MA 6.2OHM SM |
2,458 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 µH | ±2% | 80 mA | - | Unshielded | 6.2Ohm Max | 14 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-822XGRCFIXED IND 8.2UH 75MA 11OHM SM |
2,446 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 µH | ±2% | 75 mA | - | Unshielded | 11Ohm Max | 20 @ 10MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
1008CS-182XGRC1008CS-182XGRC |
2,398 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 1.8 µH | ±2% | 300 mA | - | Unshielded | 2.6Ohm Max | 28 @ 50MHz | 160MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
0805CS-562XGRCFIXED IND 5.6UH 100MA 7OHM SM |
2,382 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 µH | ±2% | 100 mA | - | Unshielded | 7Ohm Max | 20 @ 10MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
1008CS-220XGRC1008CS-220XGRC |
2,326 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 22 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
0805CS-152XGRCFIXED IND 1.5UH 200MA 1.9OHM SM |
2,322 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.5 µH | ±2% | 200 mA | - | Unshielded | 1.9Ohm Max | 10 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-222XGRCFIXED IND 2.2UH 140MA 4OHM SM |
2,305 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 µH | ±2% | 140 mA | - | Unshielded | 4Ohm Max | 16 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-182XGRCFIXED IND 1.8UH 250MA 2.42OHM SM |
2,217 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±2% | 250 mA | - | Unshielded | 2.42Ohm Max | 15 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-332XGRCFIXED IND 3.3UH 80MA 7.5OHM SM |
2,165 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 µH | ±2% | 80 mA | - | Unshielded | 7.5Ohm Max | 22 @ 25MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
1008CS-751XGRC1008CS-751XGRC |
2,141 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 750 nH | ±2% | 360 mA | - | Unshielded | 1.54Ohm Max | 45 @ 100MHz | 360MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
0805CS-272XGRCFIXED IND 2.7UH 175MA 4.5OHM SM |
1,862 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.7 µH | ±2% | 175 mA | - | Unshielded | 4.5Ohm Max | 18 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
1008CS-681XGRC1008CS-681XGRC |
1,840 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 680 nH | ±2% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
0805CS-102XGRCFIXED IND 1UH 175MA 3.2OHM SM |
1,776 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 µH | ±2% | 175 mA | - | Unshielded | 3.2Ohm Max | 20 @ 50MHz | 180MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0805CS-122XGRCFIXED IND 1.2UH 156MA 3.5OHM SM |
1,745 |
|
Datasheet |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.2 µH | ±2% | 156 mA | - | Unshielded | 3.5Ohm Max | 22 @ 50MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
1008CS-392XGRC1008CS-392XGRC |
1,057 |
|
Datasheet |
1008CS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic | 3.9 µH | ±2% | 260 mA | - | Unshielded | 3.6Ohm Max | 20 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
XFHCL11-4R7MFIXED IND 4.7UH 9A 16.5 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 9 A | 17A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-R36MFIXED IND 360NH 32A 1.4 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 32 A | 60A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL11-R56MFIXED IND 560NH 28A 1.8 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 28 A | 49A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

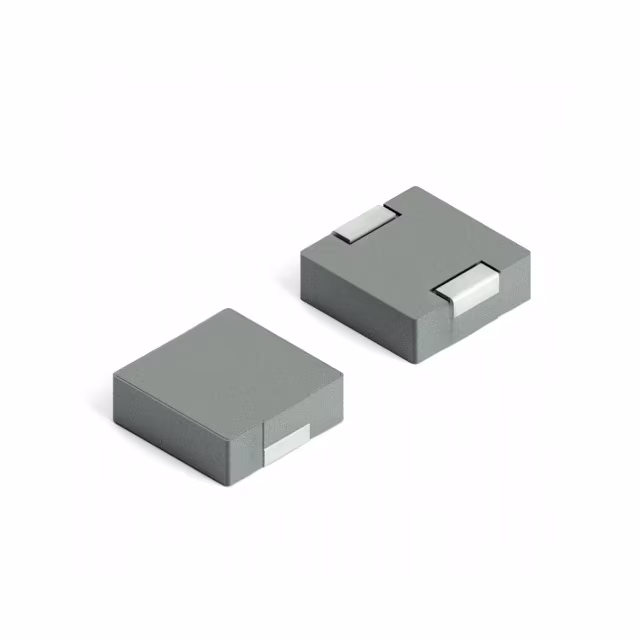

XFHCL11-5R6MFIXED IND 5.6UH 8.5A 19 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 8.5 A | 16A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
