Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPF 0605A-1R2MN-ABD1.2 UH SHIELDED MOLDED INDUCTOR |
1,600 |
|
Datasheet |
TMPF0605A-ABD | 0605 (1613 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 14 A | 22A | Unshielded | 5.83mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0605 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
TMPF 0605A-1R0MN-ABD1.0 UH SHIELDED MOLDED INDUCTOR |
1,600 |
|
Datasheet |
TMPF0605A-ABD | 0605 (1613 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 15 A | 23A | Unshielded | 4.52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0605 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
TMPF 0605A-4R7MN-ABD4.7 UH SHIELDED MOLDED INDUCTOR |
1,589 |
|
Datasheet |
TMPF0605A-ABD | 0605 (1613 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 6.5 A | 10.5A | Unshielded | 18.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0605 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PA4342.561ANLTFIXED IND 560NH 23A 1.8 MOHM SMD |
477 |
|
Datasheet |
PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 23 A | 29A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SLM40327A-R53MHFFIXED IND 530NH 30A 0.85MOHM SMD |
900 |
|
Datasheet |
SLM40327 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 530 nH | ±20% | 30 A | 28A | Shielded | 0.85mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.315" (8.00mm) |
|
AMPLA5030S-1R0MTFIXED IND 1UH 7A 14 MOHM SMD |
1,707 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
HM66-50100LFTR13FIXED IND 10UH 1.3A 65 MOHM SMD |
1,064 |
|
Datasheet |
HM66 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 10 µH | ±20% | 1.3 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
SRP1245C-R47MFIXED IND 470NH 38A 1.15MOHM SMD |
989 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±20% | 38 A | 65A | Shielded | 1.15mOhm Max | 20 @ 100kHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|

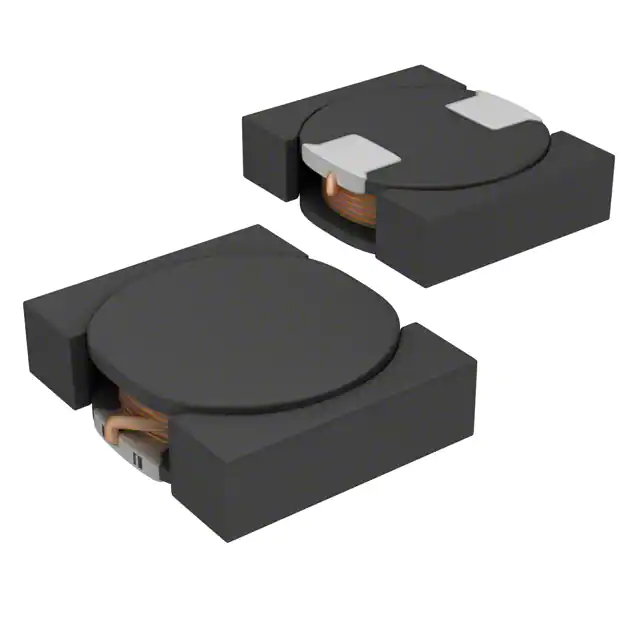

VLF403210MT-1R5NFIXED IND 1.5UH 2.96A 43MOHM SMD |
957 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.96 A | 1.85A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-6R8MFIXED IND 6.8UH 1.24A 220MOHM SM |
950 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.24 A | 840mA | Shielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-3R3MFIXED IND 3.3UH 1.95A 98MOHM SMD |
820 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.95 A | 1.19A | Shielded | 98mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-1R0NFIXED IND 1UH 3.44A 32 MOHM SMD |
799 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.44 A | 2.23A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
SLF10145T-681MR38-HFIXED IND 680UH 380MA 1.92OHM SM |
498 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 380 mA | 380mA | Shielded | 1.92Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
SRP1265C-1R5MFIXED IND 1.5UH 31A 2.8 MOHM SMD |
470 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±20% | 31 A | 46A | Shielded | 2.8mOhm Max | 20 @ 100kHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1245C-4R7MFIXED IND 4.7UH 14A 15 MOHM SMD |
443 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 4.7 µH | ±20% | 14 A | 27A | Shielded | 15mOhm Max | 20 @ 100kHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SRP1265C-1R0MFIXED IND 1UH 35A 2.3 MOHM SMD |
365 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 35 A | 54A | Shielded | 2.3mOhm Max | 20 @ 100kHz | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1265C-150MFIXED IND 15UH 11A 28 MOHM SMD |
324 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 15 µH | ±20% | 11 A | 13.5A | Shielded | 28mOhm Max | 20 @ 100kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1245C-6R8MFIXED IND 6.8UH 12A 16.7 MOHM |
254 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 6.8 µH | ±20% | 12 A | 23A | Shielded | 16.7mOhm Max | 20 @ 100kHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SRP1265C-8R2MFIXED IND 8.2UH 13A 15.5MOHM SMD |
209 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 8.2 µH | ±20% | 13 A | 22A | Shielded | 15.5mOhm Max | 20 @ 100kHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
VSHB0540-220MCAUTOMOTIVE SMD MOLDING POWER CHK |
130 |
|
Datasheet |
VSHB0540 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 2.2 A | 2.5A | Shielded | 177mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.157" (4.00mm) |
