Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM12645S-1R8M-RCFIXED IND 1.8UH 21A 4.7 MOHM SMD |
478 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
HCME104610F-900IND SMD 90NH ASSEMBLY CHOKE |
450 |
|
Datasheet |
HCME104610F | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±15% | 70 A | 87A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
PM5432.682NLTFIXED IND 6.8UH 9A 20.8MOHM SMD |
2,112 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 9 A | - | Shielded | 20.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
SBCP-14HY472BFIXED IND 4.7MH 270MA 4.97OHM TH |
1,442 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 270 mA | 480mA | Unshielded | 4.97Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SPB1012-R15YIND POWER BEAD 150NH 60A SHLD |
695 |
|
Datasheet |
SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 60 A | 70A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|

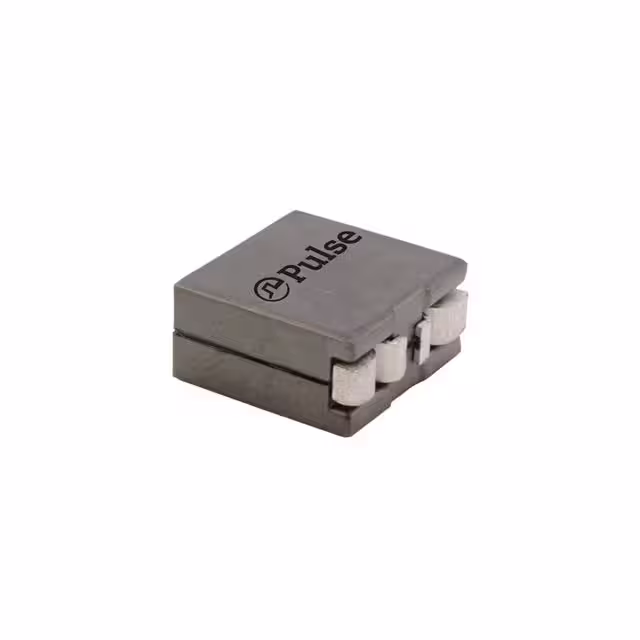

PGL6215.131HLTIND BEAD 12.0X6.0X12.0 MAX 130NH |
640 |
|
Datasheet |
PGL6215.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 130 nH | ±15% | 77 A | 100A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PGL6215.121HLTIND BEAD 12.0X6.0X12.0 MAX 120NH |
640 |
|
Datasheet |
PGL6215.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 117 nH | ±15% | 77 A | 106A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
SPM10040T-2R2M-HZRAUTO IND 2.2H 13.1A 7.92MOHM |
369 |
|
Datasheet |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 13.1 A | 12.8A | Shielded | 7.92mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPB1012-R10YIND POWER BEAD 100NH 60A SHLD |
345 |
|
Datasheet |
SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 60 A | 92A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
SPB1012-R12YIND POWER BEAD 120NH 60A SHLD |
345 |
|
Datasheet |
SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±15% | 60 A | 78A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
SPB1012-R33YIND POWER BEAD 330NH 60A SHLD |
290 |
|
Datasheet |
SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 60 A | 28A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
7443081018WE-HCM SMT HIGH CURRENT FLAT WIR |
599 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±10% | 38 A | 63.4A | Shielded | 0.29mOhm | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443081030WE-HCM SMT HIGH CURRENT FLAT WIR |
590 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 300 nH | ±10% | 34.6 A | 28.9A | Shielded | 0.29mOhm | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443081010WE-HCM SMT HIGH CURRENT FLAT WIR |
570 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±10% | 38 A | 104.4A | Shielded | 0.29mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
PA2243.472NLTIND PWR MOLDED 4.7UH 14A |
500 |
|
Datasheet |
PA2243.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 14 A | 22A | Unshielded | 10.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
7443081015WE-HCM SMT HIGH CURRENT FLAT WIR |
214 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 150 nH | ±10% | 38 A | 67A | Shielded | 0.29mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443732448015HIGH TEMPERATURE SMT POWER INDUC |
4,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 6.1 A | 7A | Shielded | 46mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448010HIGH TEMPERATURE SMT POWER INDUC |
4,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 7 A | 8.4A | Shielded | 27mOhm Max | - | 66MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448068HIGH TEMPERATURE SMT POWER INDUC |
4,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 2.7 A | 3A | Shielded | 228mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448022HIGH TEMPERATURE SMT POWER INDUC |
4,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 5.2 A | 6A | Shielded | 61mOhm Max | - | 44MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
