Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLE051H-1R5MSIND SMD 1.5UH MOLDING CHOKE |
3,000 |
|
Datasheet |
CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 6 A | 8.3A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
CMLE051E-100MSIND SMD 10.0UH MOLDING CHOKE |
2,996 |
|
Datasheet |
CMLE051E | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1.9 A | 2.7A | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.059" (1.50mm) |
|
|
CMLE051H-1R0MSIND SMD 1.0UH MOLDING CHOKE |
2,975 |
|
Datasheet |
CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 7.9 A | 10.3A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
SRP8540A-3R3MIND 8.8X8.4X3.8MM 3.3UH20% 14A S |
1,530 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 3.3 µH | ±20% | 14 A | 22A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-R22MIND 8.8X8.4X3.8MM 0.22UH20% 31A |
1,459 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 220 nH | ±20% | 31 A | 60A | Shielded | 1.76mOhm Max | 10 @ 100kHz | 132MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-R33MIND 8.8X8.4X3.8MM 0.33UH20% 30A |
1,206 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 330 nH | ±20% | 30 A | 55A | Shielded | 2.2mOhm Max | 10 @ 100kHz | 90MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
SRP8540A-1R5MIND 8.8X8.4X3.8MM 1.5UH20% 17A S |
955 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 1.5 µH | ±20% | 17 A | 27A | Shielded | 7.3mOhm Max | 20 @ 100kHz | 33MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|

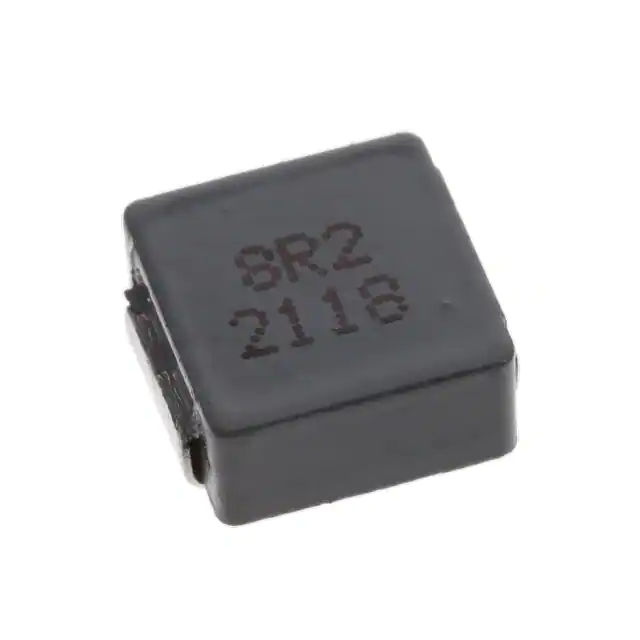

SRP8540A-8R2MIND 8.8X8.4X3.8MM 8.2UH20% 6A SH |
900 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 8.2 µH | ±20% | 6 A | 16A | Shielded | 51mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
CMLE053T-R33MSIND SMD 0.33UH MOLDING CHOKE |
900 |
|
Datasheet |
CMLE053T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 14 A | 14A | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.118" (3.00mm) |
|
IHLP4040DZERR22M11FIXED IND 220NH 33A 0.95MOHM SMD |
800 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 33 A | 44A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SRP8540A-R47MIND 8.8X8.4X3.8MM 0.47UH20% 28A |
799 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 470 nH | ±20% | 28 A | 40A | Shielded | 2.86mOhm Max | 10 @ 100kHz | 69MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-R56MIND 8.8X8.4X3.8MM 0.56UH20% 25A |
798 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 560 nH | ±20% | 25 A | 38A | Shielded | 2.97mOhm Max | 15 @ 100kHz | 58MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
IHLP3232CZERR33M01FIXED IND 330NH 25A 2.57MOHM SMD |
750 |
|
Datasheet |
IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 25 A | 32A | Shielded | 2.57mOhm Max | - | 101MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
|
SRP8540A-1R0MIND 8.8X8.4X3.8MM 1UH20% 18A SHD |
745 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 1 µH | ±20% | 18 A | 29A | Shielded | 4.95mOhm Max | 20 @ 100kHz | 35MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SPB1007-R27MIND POWER BEAD 270NH 61A SHLD |
685 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±20% | 61 A | 40A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
|
|
SRP8540A-6R8MIND 8.8X8.4X3.8MM 6.8UH20% 6.5A |
658 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 6.8 µH | ±20% | 6.5 A | 16.5A | Shielded | 46mOhm Max | 20 @ 100kHz | 14MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-5R6MIND 8.8X8.4X3.8MM 5.6UH20% 7.5A |
645 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 5.6 µH | ±20% | 7.5 A | 17A | Shielded | 35mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
B82442T1154K050FIXED IND 150UH 410MA 1.5OHM SMD |
635 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 410 mA | 610mA | Unshielded | 1.5Ohm Max | 20 @ 796kHz | 4.6MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
CMLE053T-1R5MSIND SMD 1.5UH MOLDING CHOKE |
598 |
|
Datasheet |
CMLE053T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 7.2 A | 8A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.118" (3.00mm) |
|
|
SPB1007-R30MIND POWER BEAD 300NH 61A SHLD |
586 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | 61 A | 35A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
