Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32641B4683J000CAP FILM 0.068UF 5% 400VDC RAD |
7,531 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

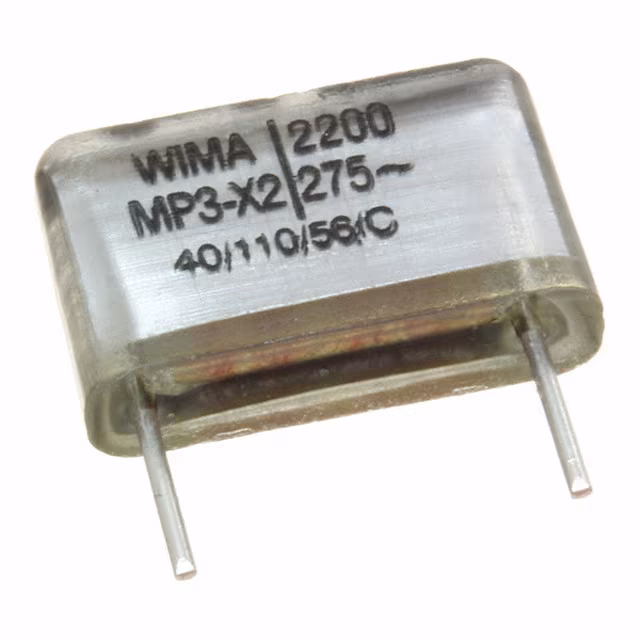

MPX21W1220FA00MSSDCAP FILM 2200PF 20% 275VAC RAD |
4,950 |
|
Datasheet |
Radial | 2200 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.157" W (13.50mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R60DI3680JH30JCAP FILM AUTOMOTIVE |
8,160 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
R60DI3680JB30KCAP FILM AUTOMOTIVE |
7,951 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
R60DI3680JE30JCAP FILM AUTOMOTIVE |
5,274 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
MKP1J022703G00JSSDMKP 10 0.027 F 630 VDC 6X12X13 P |
8,516 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP2C023301L00JC00FKP 2 0.033 F 63 VDC 8.5X10X7.2 |
8,760 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP2C023301L00JF00FKP 2 0.033 F 63 VDC 8.5X10X7.2 |
8,251 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP2C023301L00JI00FKP 2 0.033 F 63 VDC 8.5X10X7.2 |
4,978 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP2C023301L00JA00FKP 2 0.033 F 63 VDC 8.5X10X7.2 |
6,139 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1J023303G00JSSDMKP 10 0.033 F 630 VDC 6X12X13 P |
5,758 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
F881AL472M300LCAP FILM POLYPROP RAD Y2 |
8,373 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.295" (7.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R76QF11005000KCAP FILM AUTO POLYPROP RAD |
6,594 |
|
Datasheet |
Radial | 1000 pF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 637 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R79PC2150AA40JCAP FILM METAL RAD POLYPROP |
5,851 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
R76IF2470JH30JCAP FILM AUTO POLYPROP RAD |
7,474 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76IF2470JE30JCAP FILM AUTO POLYPROP RAD |
9,817 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F881AL182J300L1800PF 300V |
8,663 |
|
Datasheet |
Radial | 1800 pF | ±5% | 300V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.295" (7.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
F461BC334M160Z.330UF 160V |
3,865 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F872AL182J480L1800PF 480V |
7,336 |
|
Datasheet |
Radial | 1800 pF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.295" (7.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS2D041001K00KC00CAP FILM 1UF 10% 100VDC RADIAL |
7,087 |
|
Datasheet |
Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
