Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

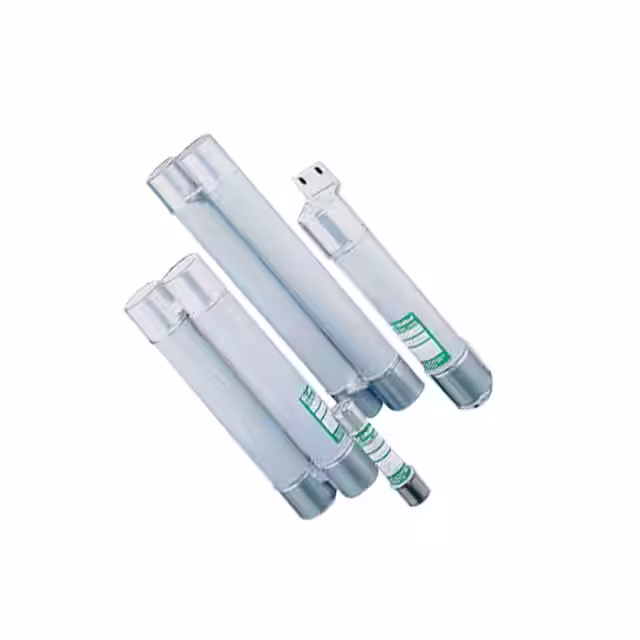

5NLE65EFUSE CARTRIDGE 65A 5.5KVAC |
8,021 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 65A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 80kA | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | - | - |
|
LA100P10004FUSE CARTRIDGE 1KA 1KVAC/750VDC |
9,589 |
|
Datasheet |
POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 3.500" Dia x 8.228" L (88.90mm x 209.00mm) | - | - |
|
|
80E1C2.75FUSE CARTRIDGE 80A 2.75KVAC |
5,880 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 80A | 2.75 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 80kA | 3.000" Dia x 10.875" L (76.20mm x 276.23mm) | - | - |
|
|
LA070URD73TTI1600FUSE SQUARE 1.6KA 700VAC RECT |
6,633 |
|
Datasheet |
POWR-GARD® LA | Rectangular | Box | Active | Bolt Mount | Square | 1.6kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 2.913" L x 2.933" W x 3.131" H (74.00mm x 74.50mm x 79.53mm) | - | - |
|
|
LA30QS1600128FUSE CRTRDGE 1.6A 300VAC/DC PUCK |
5,527 |
|
Datasheet |
POWR-GARD® LA30QS | Hockey Puck | Box | Active | Bolt Mount | Cartridge | 1.6A | 300 VAC | 300 VDC | Fast Blow | Semiconductors | - | - | UR | - | 200kA | 3.500" Dia x 2.591" L (88.90mm x 65.80mm) | - | - |
|
|
LA30QS2500128FUSE CARTRIDGE 2.5KA 300VAC/VDC |
5,738 |
|
Datasheet |
POWR-GARD® LA30QS | Hockey Puck | Box | Active | Bolt Mount | Cartridge | 2.5kA | 300 VAC | 300 VDC | Fast Blow | Semiconductors | - | - | UR | - | 200kA | 3.500" Dia x 2.591" L (88.90mm x 65.80mm) | - | - |
|
|
702R1C5.5XFUSE CARTRIDGE 70A 5.5KVAC |
2,108 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 70A | 5.5 kVAC | - | - | Motor Protection | Indicating | R | - | - | 80kA | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | - | - |
|
|
100E1C5.5FUSE CARTRIDGE 100A 5.5KVAC |
7,328 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 100A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 80kA | 3.000" Dia x 15.875" L (76.20mm x 403.23mm) | - | - |
|
|
15E1C8.25FUSE CARTRIDGE 15A 8.25KVAC |
4,316 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | 8.25 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 80kA | 3.000" Dia x 15.875" L (76.20mm x 403.23mm) | - | - |
|
|
501.5R1C3.8FUSE CARTRIDGE 50A 3.8KVAC |
5,595 |
|
Datasheet |
POWR-GARD® | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 3.8 kVAC | - | - | Motor Protection | Indicating | R | - | - | 80kA | - | - | - |
|
|
LA50QS10004FUSE CARTRIDGE 1KA 500VAC/VDC |
5,027 |
|
Datasheet |
POWR-GARD® LA50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 500 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 200kA AC, 100kA DC | 3.000" Dia x 3.220" L (76.20mm x 81.80mm) | - | - |
|
|
LA50QS12004FUSE CARTRIDGE 1.2KA 500VAC/VDC |
6,350 |
|
Datasheet |
POWR-GARD® LA50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | 500 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 200kA AC, 100kA DC | 3.000" Dia x 3.220" L (76.20mm x 81.80mm) | - | - |
|
LA60Q82FUSE CARTRIDGE 8A 600VAC/VDC 5AG |
6,672 |
|
Datasheet |
POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 8A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA AC, 100kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
LA15QS22FUSE CARTRIDGE 2A 150VAC/VDC 5AG |
4,309 |
|
Datasheet |
POWR-GARD® LA15QS | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2A | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 0.409" Dia x 1.500" L (10.40mm x 38.10mm) | - | - |
|
|
LA15QS72FUSE CARTRIDGE 7A 150VAC/VDC 5AG |
7,528 |
|
Datasheet |
POWR-GARD® LA15QS | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 7A | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 0.409" Dia x 1.500" L (10.40mm x 38.10mm) | - | - |
|
|
LA15QS122FUSE CRTRDGE 12A 150VAC/VDC 5AG |
6,715 |
|
Datasheet |
POWR-GARD® LA15QS | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 12A | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 0.409" Dia x 1.500" L (10.40mm x 38.10mm) | - | - |
|
|
LA60Q62FUSE CARTRIDGE 600VAC/VDC 5AG |
8,990 |
|
Datasheet |
POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | - | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | - | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
LA30QS404FUSE CARTRIDGE 40A 300VAC/VDC |
6,806 |
|
Datasheet |
POWR-GARD® LA30QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | 300 VAC | 300 VDC | Fast Blow | Semiconductors | - | - | UR | - | 200kA | 0.811" Dia x 1.630" L (20.60mm x 41.40mm) | - | - |
|
|
LA15QS3004FUSE CARTRIDGE 300A 150VAC/VDC |
5,060 |
|
Datasheet |
POWR-GARD® LA15QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 150 VAC | 150 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 1.130" Dia x 1.161" L (28.70mm x 29.50mm) | - | - |
|
|
LA100P251FUSE CARTRIDGE 25A 1KVAC/750VDC |
2,882 |
|
Datasheet |
POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 25A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.000" Dia x 3.469" L (50.80mm x 88.10mm) | - | - |
