Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHSA5930R0010FRES 0.001 OHM 1% 9W 5930 |
2,899 |
|
Datasheet |
CHSA | 6030 (15075 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 9W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 5930 | 0.591" L x 0.299" W (15.00mm x 7.60mm) | 0.059" (1.50mm) | 2 | - |
|
PWR4525WR270JERESISTOR, FIXED, POWER |
4,000 |
|
Datasheet |
PWR4525 | 4525 J-Lead | Tape & Reel (TR) | Active | 270 mOhms | ±5% | 2W | Wirewound | Current Sense, Moisture Resistant, Pulse Withstanding | ±90ppm/°C | -55°C ~ 275°C | - | 4525 | 0.449" L x 0.252" W (11.40mm x 6.40mm) | 0.197" (5.00mm) | 2 | - |
|
355068RFTRES 3550 68R 1% |
2,844 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 68 Ohms | ±1% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
|
RW5S0FA4K70JERES SMD 4.7K OHM 5% 5W L BEND |
111 |
|
Datasheet |
RW | SMD, L-Bend | Bulk | Active | 4.7 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 155°C | - | - | 0.806" L x 0.365" W (20.47mm x 9.27mm) | 0.406" (10.31mm) | 2 | - |
|
WSL1206R0200FTARES 0.02 OHM 1% 1/4W 1206 |
6,570 |
|
Datasheet |
WSL | - | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|
PU5931FKNT50U5LRES SMD 500 UOHM 1% 5W 5931 |
1,490 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±175ppm/°C | -65°C ~ 275°C | AEC-Q200 | - | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.054" (1.36mm) | 2 | - |
|
|
PU5931FKMT50R002LRES 0.002 OHM 1% 5W 5931 |
1,107 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | - | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.082" (2.09mm) | 2 | - |
|
|
PU5931FKMT50R004LRES 0.004 OHM 1% 5W 5931 |
474 |
|
Datasheet |
PU | Nonstandard | Tape & Reel (TR) | Active | 4 mOhms | ±1% | 5W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±75ppm/°C | -65°C ~ 275°C | AEC-Q200 | - | 0.591" L x 0.305" W (15.00mm x 7.75mm) | - | 2 | - |
|
PNM0805E1001BST5RES SMD 1K OHM 0.1% 1/5W 0805 |
445 |
|
Datasheet |
PNM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.2W, 1/5W | Thin Film | Anti-Sulfur, Moisture Resistant, Non-Inductive, Non-Magnetic | ±25ppm/°C | -55°C ~ 155°C | - | 0805 | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.033" (0.84mm) | 2 | - |
|
WSL20101L500FEK18RES 0.0015 OHM 1% 1W 2010 |
116 |
|
Datasheet |
WSL-HP | 2010 (5025 Metric) | Bulk | Active | 1.5 mOhms | ±1% | 1W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±275ppm/°C | -65°C ~ 170°C | AEC-Q200 | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.035" (0.89mm) | 2 | - |
|
RCP0505W75R0GEBRES SMD 75 OHM 2% 1.4W 0505 |
1,171 |
|
Datasheet |
RCP | 0505 (1412 Metric) | Tape & Reel (TR) | Active | 75 Ohms | ±2% | 1.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0505 | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.025" (0.64mm) | 2 | - |
|
|
355039KFTRES 3550 39K 1% |
1,830 |
|
Datasheet |
3550, CGS | Nonstandard | Tape & Reel (TR) | Active | 39 kOhms | ±1% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 155°C | - | - | 0.433" L x 0.197" W (11.00mm x 5.00mm) | 0.047" (1.20mm) | 2 | - |
.jpg)
|
TNPV12102M13BEENRES SMD 2.13M OHM 0.1% 1/3W 1210 |
103 |
|
Datasheet |
TNPV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | 2.13 MOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | ±25ppm/°C | -55°C ~ 125°C | AEC-Q200 | 1210 | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.030" (0.75mm) | 2 | - |
|
|
RCP0505W100RGEBRES SMD 100 OHM 2% 1.4W 0505 |
790 |
|
Datasheet |
RCP | 0505 (1412 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±2% | 1.4W | Thick Film | Moisture Resistant | ±150ppm/°C | -65°C ~ 155°C | - | 0505 | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.025" (0.64mm) | 2 | - |
|

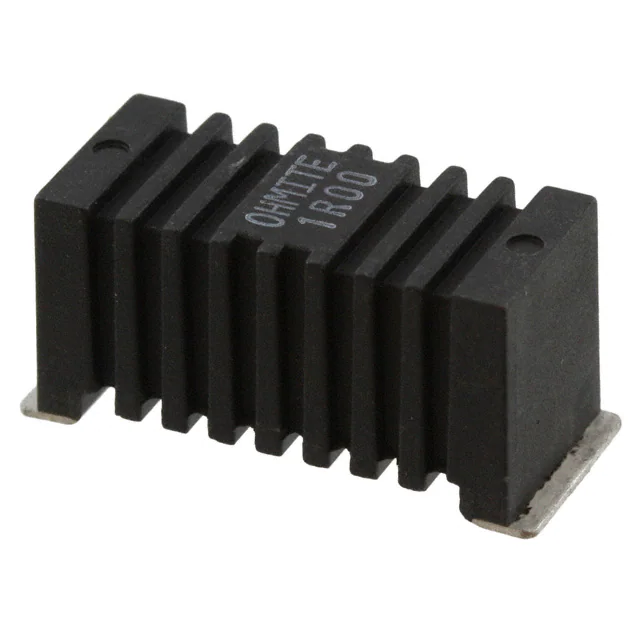

RW5S0FA1R00FERES SMD 1 OHM 1% 5W L BEND |
255 |
|
Datasheet |
RW | SMD, L-Bend | Bulk | Active | 1 Ohms | ±1% | 5W | Wirewound | - | ±50ppm/°C | -55°C ~ 155°C | - | - | 0.806" L x 0.365" W (20.47mm x 9.27mm) | 0.406" (10.31mm) | 2 | - |
|
SMA-A0207BTNT1K8RES 1.8K OHM 0.1% 1W MELF 0207 |
7,275 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 1.8 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT3K3RES 3.3K OHM 0.1% 1W MELF 0207 |
7,215 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 3.3 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT18KRES 18K OHM 0.1% 1W MELF 0207 |
5,765 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 18 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT56KRES 56K OHM 0.1% 1W MELF 0207 |
4,641 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 56 kOhms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
|
SMA-A0207BTNT560RRES 560 OHM 0.1% 1W MELF 0207 |
4,026 |
|
Datasheet |
SMA-A | MELF, 0207 | Tape & Reel (TR) | Active | 560 Ohms | ±0.1% | 1W | Metal Film | Automotive AEC-Q200 | ±15ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0207 | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | - | 2 | - |
