Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
842-044-521-104CONN EDGE SINGLE FML 44POS 0.100 |
1,058 |
|
Datasheet |
842 | Box | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
842-044-524-104CONN EDGE SINGLE FML 44POS 0.100 |
4,813 |
|
Datasheet |
842 | Box | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
896-092-500-208CONN EDGE DUAL FMALE 92POS 0.125 |
3,891 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Dual Edge | Female | 46 | 92 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
896-092-500-207CONN EDGE DUAL FMALE 92POS 0.125 |
4,019 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Dual Edge | Female | 46 | 92 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
807-028-458-103CONN EDGE SGL FML 28POS 0.156 |
3,421 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|

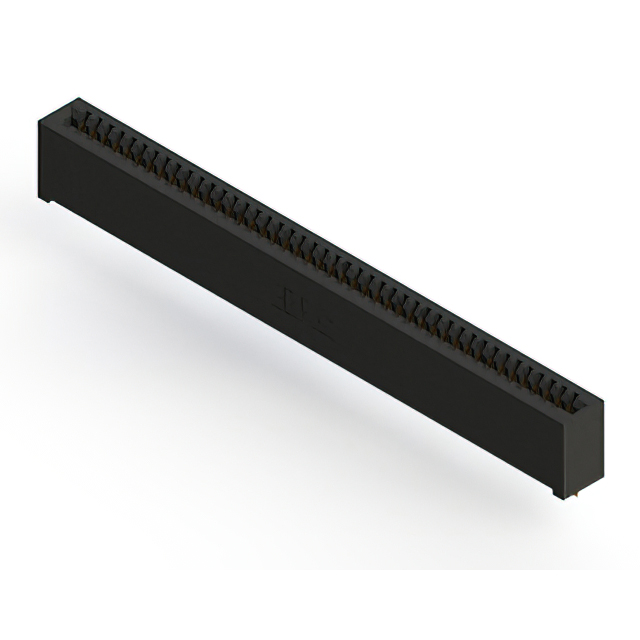

892-044-520-101CONN EDGE SINGLE FML 44POS 0.100 |
4,049 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
892-044-520-102CONN EDGE SINGLE FML 44POS 0.100 |
4,981 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
896-092-500-203CONN EDGE DUAL FMALE 92POS 0.125 |
3,760 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Dual Edge | Female | 46 | 92 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
896-092-500-803CONN EDGE DUAL FMALE 92POS 0.125 |
2,858 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Dual Edge | Female | 46 | 92 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
892-044-524-101CONN EDGE SINGLE FML 44POS 0.100 |
2,008 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
892-044-521-101CONN EDGE SINGLE FML 44POS 0.100 |
4,468 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
892-044-523-104CONN EDGE SINGLE FML 44POS 0.100 |
3,317 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-028-458-108CONN EDGE SGL FML 28POS 0.156 |
2,181 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
896-092-500-807CONN EDGE DUAL FMALE 92POS 0.125 |
3,955 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Dual Edge | Female | 46 | 92 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
892-044-521-102CONN EDGE SINGLE FML 44POS 0.100 |
4,232 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-044-542-102CONN EDGE SINGLE FML 44POS 0.100 |
4,297 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-044-544-104CONN EDGE SINGLE FML 44POS 0.100 |
3,786 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-044-523-101CONN EDGE SINGLE FML 44POS 0.100 |
1,043 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
892-044-542-104CONN EDGE SINGLE FML 44POS 0.100 |
4,857 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-044-520-104CONN EDGE SINGLE FML 44POS 0.100 |
4,155 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 44 | 44 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
