Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
845-052-559-108CONN EDGE SINGLE FML 52POS 0.100 |
3,158 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 52 | 52 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-056-558-404CONN EDGE SINGLE FML 56POS 0.100 |
3,398 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-037-505-102CONN EDGE SGL FMALE 37POS 0.156 |
2,515 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
833-021-500-107CONN EDGE SGL FMALE 21POS 0.156 |
1,383 |
|
Datasheet |
833 | Box | Active | Non Specified - Single Edge | Female | 21 | 21 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
845-056-558-402CONN EDGE SINGLE FML 56POS 0.100 |
2,369 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-052-558-108CONN EDGE SINGLE FML 52POS 0.100 |
2,696 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 52 | 52 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-056-559-402CONN EDGE SINGLE FML 56POS 0.100 |
1,374 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
837-021-500-607CONN EDGE SGL FMALE 21POS 0.156 |
1,784 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 21 | 21 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
807-080-560-201CONN EDGE DUAL FMALE 80POS 0.156 |
3,799 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | - | -40°C ~ 125°C |
|
807-080-559-201CONN EDGE DUAL FMALE 80POS 0.156 |
4,642 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | - | -40°C ~ 125°C |
|
833-021-500-607CONN EDGE SGL FMALE 21POS 0.156 |
2,813 |
|
Datasheet |
833 | Box | Active | Non Specified - Single Edge | Female | 21 | 21 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
845-056-559-102CONN EDGE SINGLE FML 56POS 0.100 |
3,138 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-056-558-102CONN EDGE SINGLE FML 56POS 0.100 |
2,255 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-052-559-608CONN EDGE SINGLE FML 52POS 0.100 |
4,860 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 52 | 52 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-037-545-102CONN EDGE SGL FMALE 37POS 0.156 |
4,535 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

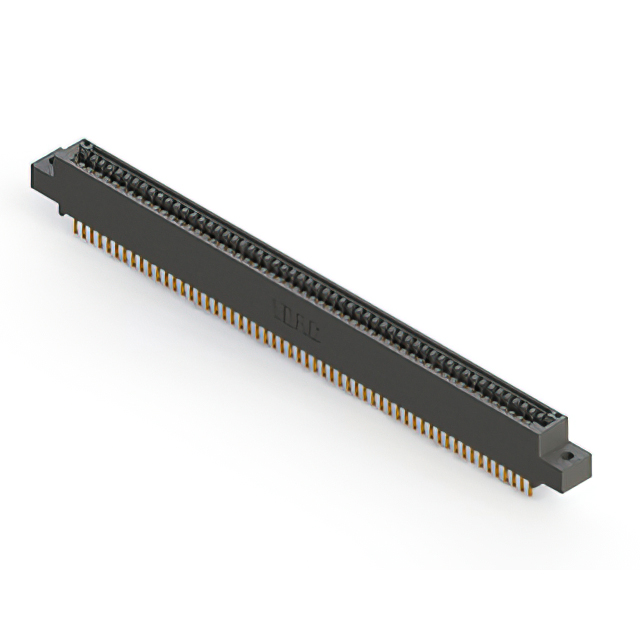

895-056-558-402CONN EDGE SINGLE FML 56POS 0.100 |
3,096 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 56 | 56 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-080-458-202CONN EDGE DUAL FMALE 80POS 0.156 |
4,876 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-037-427-102CONN EDGE SGL FML 37POS 0.156 |
2,092 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-021-500-608CONN EDGE SGL FMALE 21POS 0.156 |
2,834 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 21 | 21 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
895-052-558-108CONN EDGE SINGLE FML 52POS 0.100 |
2,893 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 52 | 52 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
