Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-035-531-104CONN EDGE SGL FMALE 35POS 0.156 |
1,370 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-070-555-204CONN EDGE DUAL FMALE 70POS 0.156 |
4,111 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 35 | 70 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-070-559-204CONN EDGE DUAL FMALE 70POS 0.156 |
3,442 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 35 | 70 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-028-445-102CONN EDGE SGL FML 28POS 0.156 |
3,881 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-028-445-104CONN EDGE SGL FML 28POS 0.156 |
4,078 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-028-405-101CONN EDGE SGL FML 28POS 0.156 |
3,748 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-028-431-102CONN EDGE SGL FML 28POS 0.156 |
1,506 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-024-531-107CONN EDGE SGL FMALE 24POS 0.156 |
3,285 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 24 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
857-024-525-107CONN EDGE SGL FMALE 24POS 0.156 |
2,909 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 24 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
857-024-445-108CONN EDGE SGL FML 24POS 0.156 |
3,689 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 24 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
857-028-431-101CONN EDGE SGL FML 28POS 0.156 |
4,721 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-028-447-104CONN EDGE SGL FML 28POS 0.156 |
3,539 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-028-527-101CONN EDGE SGL FMALE 28POS 0.156 |
2,533 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|

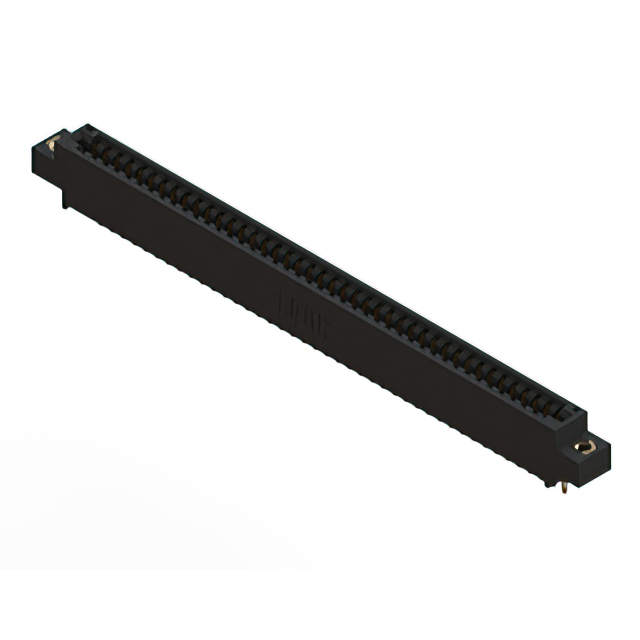

896-042-500-608CONN EDGE SGL FMALE 42POS 0.125 |
1,048 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Single Edge | Female | 42 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.125" (3.18mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
857-028-425-102CONN EDGE SGL FML 28POS 0.156 |
4,640 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-028-447-101CONN EDGE SGL FML 28POS 0.156 |
3,058 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-028-547-104CONN EDGE SGL FMALE 28POS 0.156 |
4,371 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-028-545-102CONN EDGE SGL FMALE 28POS 0.156 |
3,682 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 28 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-018-459-112CONN EDGE SGL FML 18POS 0.156 |
4,295 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 18 | 18 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
896-042-500-108CONN EDGE SGL FMALE 42POS 0.125 |
1,432 |
|
Datasheet |
896 | Bulk | Active | Non Specified - Single Edge | Female | 42 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.125" (3.18mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
