Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41858C7157M8CAP ALUM 150UF 20% 35V RADIAL TH |
2,356 |
|
Datasheet |
B41858 | Tape & Box (TB) | Obsolete | 150 µF | ±20% | 35 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

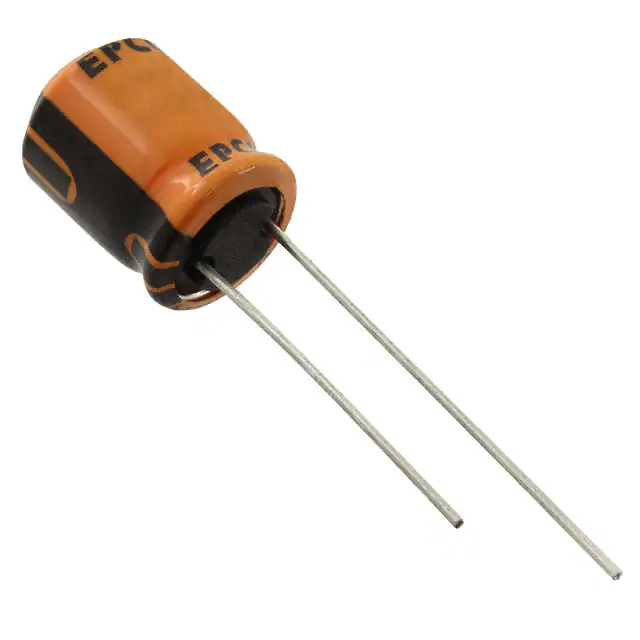

B41858C8107M000CAP ALUM 100UF 20% 63V RADIAL TH |
2,158 |
|
Datasheet |
B41858 | Bulk | Obsolete | 100 µF | ±20% | 63 V | 577mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 354 mA @ 100 kHz | 500 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
B41858C8127MCAP ALUM 120UF 20% 63V RADIAL TH |
2,725 |
|
Datasheet |
B41858 | Bulk | Obsolete | 120 µF | ±20% | 63 V | 308mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 519 mA @ 100 kHz | 279 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
B41858C8157MCAP ALUM 150UF 20% 63V RADIAL TH |
2,149 |
|
Datasheet |
B41858 | Bulk | Obsolete | 150 µF | ±20% | 63 V | 308mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 519 mA @ 100 kHz | 279 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
B41858C8686MCAP ALUM 68UF 20% 63V RADIAL TH |
1,573 |
|
Datasheet |
B41858 | Bulk | Obsolete | 68 µF | ±20% | 63 V | 541mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 310 mA @ 100 kHz | 488 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D4277MCAP ALUM 270UF 20% 16V RADIAL TH |
4,418 |
|
Datasheet |
B41858 | Bulk | Obsolete | 270 µF | ±20% | 16 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D4277M8CAP ALUM 270UF 20% 16V RADIAL TH |
4,371 |
|
Datasheet |
B41858 | Tape & Box (TB) | Obsolete | 270 µF | ±20% | 16 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D4337MCAP ALUM 330UF 20% 16V RADIAL TH |
3,601 |
|
Datasheet |
B41858 | Bulk | Obsolete | 330 µF | ±20% | 16 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D5227MCAP ALUM 220UF 20% 25V RADIAL TH |
3,893 |
|
Datasheet |
B41858 | Bulk | Obsolete | 220 µF | ±20% | 25 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D5227M8CAP ALUM 220UF 20% 25V RADIAL TH |
3,664 |
|
Datasheet |
B41858 | Tape & Box (TB) | Active | 220 µF | ±20% | 25 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D7127MCAP ALUM 120UF 20% 35V RADIAL TH |
1,642 |
|
Datasheet |
B41858 | Bulk | Obsolete | 120 µF | ±20% | 35 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41858D7127M8CAP ALUM 120UF 20% 35V RADIAL TH |
4,217 |
|
Datasheet |
B41858 | Tape & Box (TB) | Obsolete | 120 µF | ±20% | 35 V | 274mOhm @ 10kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 436 mA @ 100 kHz | 246 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

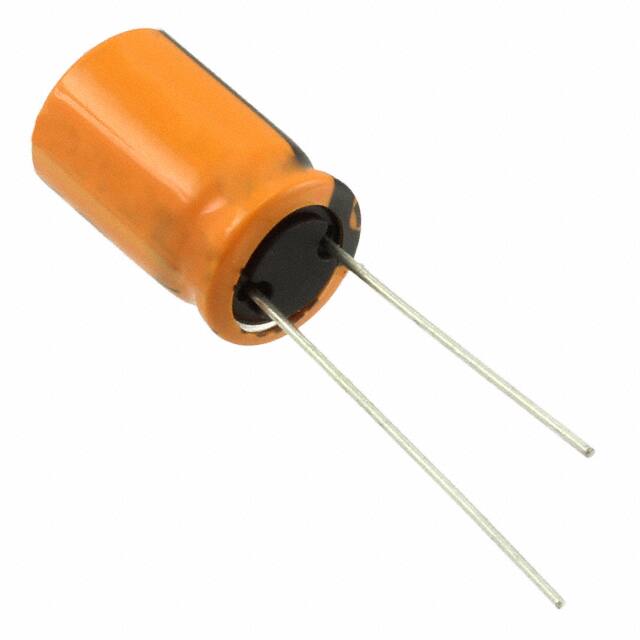

B41868W4227MCAP ALUM 220UF 20% 16V RADIAL TH |
3,158 |
|
Datasheet |
B41868 | Bulk | Obsolete | 220 µF | ±20% | 16 V | 228mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | - | 426 mA @ 100 kHz | 208 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
B41868W7107MCAP ALUM 100UF 20% 35V RADIAL TH |
2,140 |
|
Datasheet |
B41868 | Bulk | Obsolete | 100 µF | ±20% | 35 V | 228mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | - | 426 mA @ 100 kHz | 208 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
B41888C3108MCAP ALUM 1000UF 20% 10V RADIAL |
4,227 |
|
Datasheet |
B41888 | Bulk | Active | 1000 µF | ±20% | 10 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
B41888C4337MCAP ALUM 330UF 20% 16V RADIAL TH |
1,716 |
|
Datasheet |
B41888 | Bulk | Obsolete | 330 µF | ±20% | 16 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41888C4397MCAP ALUM 390UF 20% 16V RADIAL TH |
2,899 |
|
Datasheet |
B41888 | Bulk | Obsolete | 390 µF | ±20% | 16 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41888C5227M8CAP ALUM 220UF 20% 25V RADIAL TH |
4,348 |
|
Datasheet |
B41888 | Bulk | Obsolete | 220 µF | ±20% | 25 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41888C5277MCAP ALUM 270UF 20% 25V RADIAL TH |
4,041 |
|
Datasheet |
B41888 | Bulk | Obsolete | 270 µF | ±20% | 25 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
B41888C5567MCAP ALUM 560UF 20% 25V RADIAL TH |
2,164 |
|
Datasheet |
B41888 | Bulk | Active | 560 µF | ±20% | 25 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole |
