Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2S331JACAP ALUM 330UF 20% 420V SNAP TH |
2,543 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 420 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2S331KACAP ALUM 330UF 20% 420V SNAP TH |
2,468 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 420 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EET-HC2S331LACAP ALUM 330UF 20% 420V SNAP TH |
3,709 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 330 µF | ±20% | 420 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

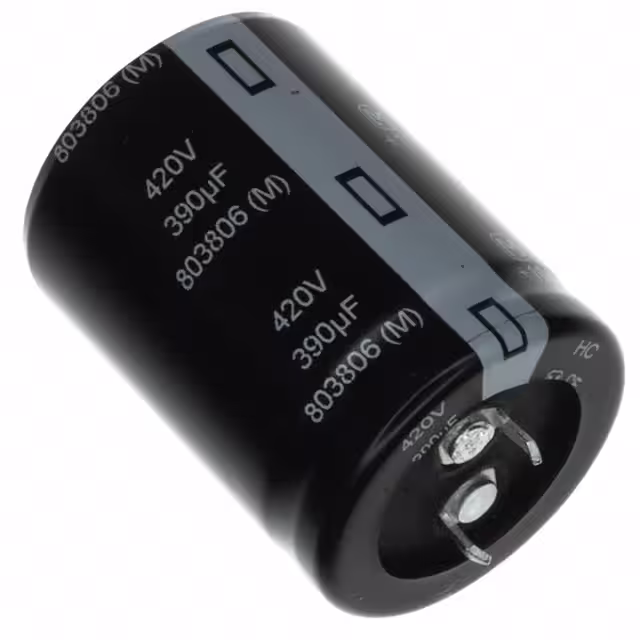

EET-HC2S391KACAP ALUM 390UF 20% 420V SNAP TH |
2,141 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 420 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2S391LACAP ALUM 390UF 20% 420V SNAP TH |
2,581 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 390 µF | ±20% | 420 V | 468mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

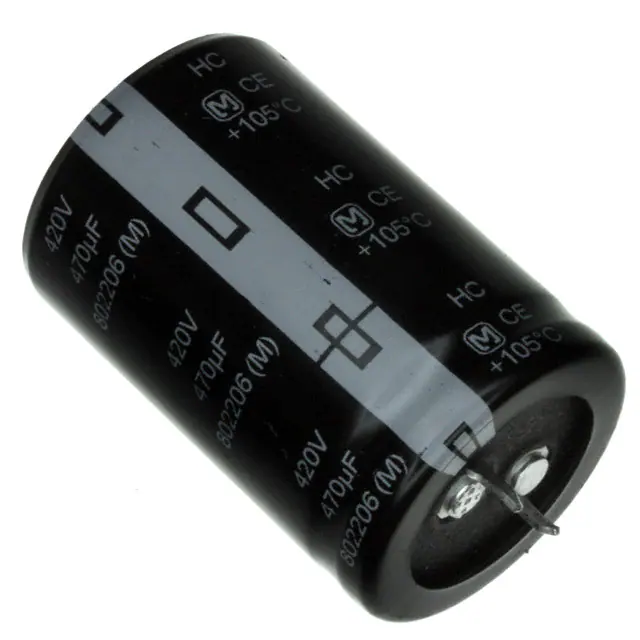

EET-HC2S471KACAP ALUM 470UF 20% 420V SNAP TH |
1,483 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 470 µF | ±20% | 420 V | 388mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.394 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2S471LACAP ALUM 470UF 20% 420V SNAP TH |
2,670 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 470 µF | ±20% | 420 V | 388mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.394 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

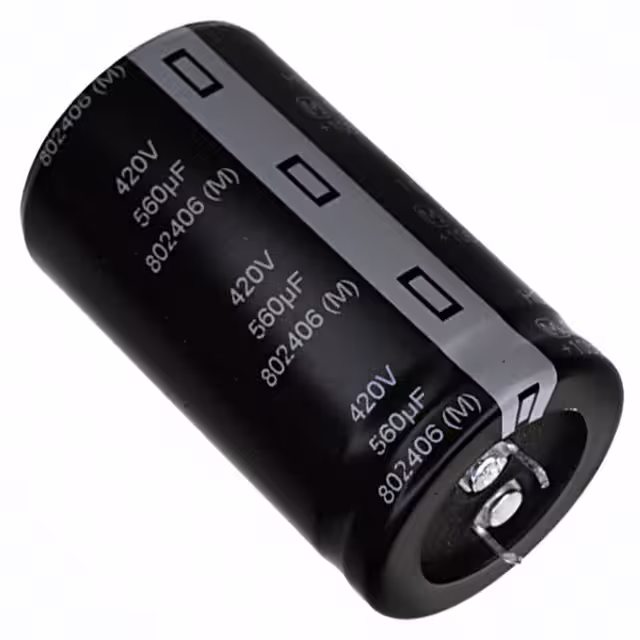

EET-HC2S561KACAP ALUM 560UF 20% 420V SNAP TH |
3,901 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 560 µF | ±20% | 420 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2S561LACAP ALUM 560UF 20% 420V SNAP TH |
2,498 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 560 µF | ±20% | 420 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2S681LACAP ALUM 680UF 20% 420V SNAP TH |
3,786 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 680 µF | ±20% | 420 V | 268mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EET-HC2W101HACAP ALUM 100UF 20% 450V SNAP TH |
2,438 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.824Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2W101JACAP ALUM 100UF 20% 450V SNAP TH |
3,833 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.824Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2W121HACAP ALUM 120UF 20% 450V SNAP TH |
2,851 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.008 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2W121JACAP ALUM 120UF 20% 450V SNAP TH |
1,756 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.008 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EET-HC2W151HACAP ALUM 150UF 20% 450V SNAP TH |
3,226 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.216Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.106 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EET-HC2W151JACAP ALUM 150UF 20% 450V SNAP TH |
1,864 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.216Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.106 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

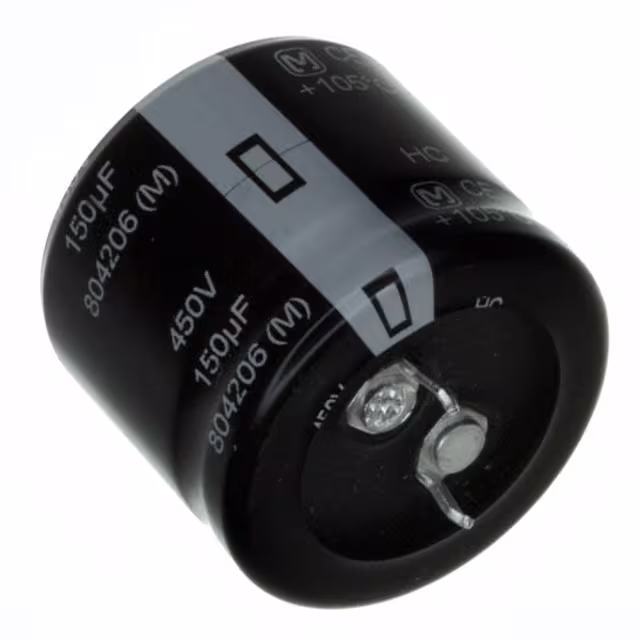

EET-HC2W151KACAP ALUM 150UF 20% 450V SNAP TH |
2,642 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.216Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.106 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2W181HACAP ALUM 180UF 20% 450V SNAP TH |
2,617 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2W181JFCAP ALUM 180UF 20% 450V SNAP TH |
4,160 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EET-HC2W181JACAP ALUM 180UF 20% 450V SNAP TH |
3,950 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
