Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-UQ2S151HACAP ALUM 150UF 20% 420V SNAP TH |
1,056 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 150 µF | ±20% | 420 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2S151JACAP ALUM 150UF 20% 420V SNAP TH |
3,925 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 150 µF | ±20% | 420 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2S181HACAP ALUM 180UF 20% 420V SNAP TH |
3,457 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 180 µF | ±20% | 420 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.072 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
EET-UQ2S181JACAP ALUM 180UF 20% 420V SNAP TH |
4,510 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 180 µF | ±20% | 420 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.072 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S221HFCAP ALUM 220UF 20% 420V SNAP TH |
3,182 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S221JACAP ALUM 220UF 20% 420V SNAP TH |
1,379 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

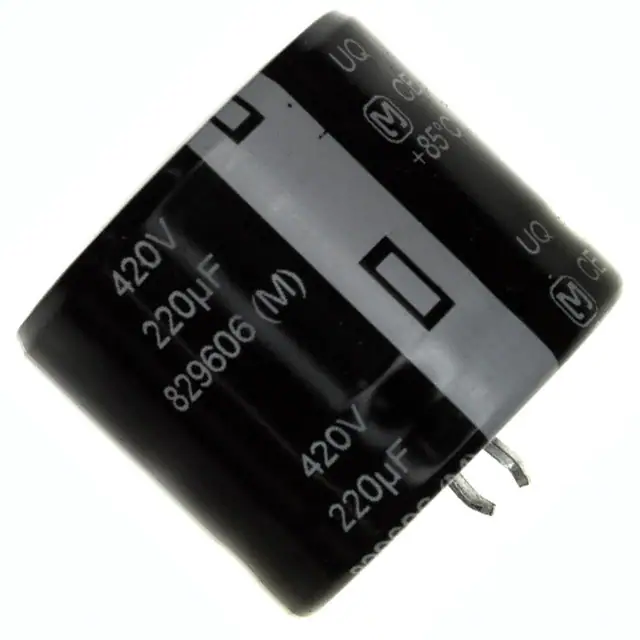

EET-UQ2S221KACAP ALUM 220UF 20% 420V SNAP TH |
4,350 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 220 µF | ±20% | 420 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
EET-UQ2S271HFCAP ALUM 270UF 20% 420V SNAP TH |
4,612 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2S271JACAP ALUM 270UF 20% 420V SNAP TH |
1,011 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-UQ2S271KACAP ALUM 270UF 20% 420V SNAP TH |
2,220 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S331JACAP ALUM 330UF 20% 420V SNAP TH |
3,067 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

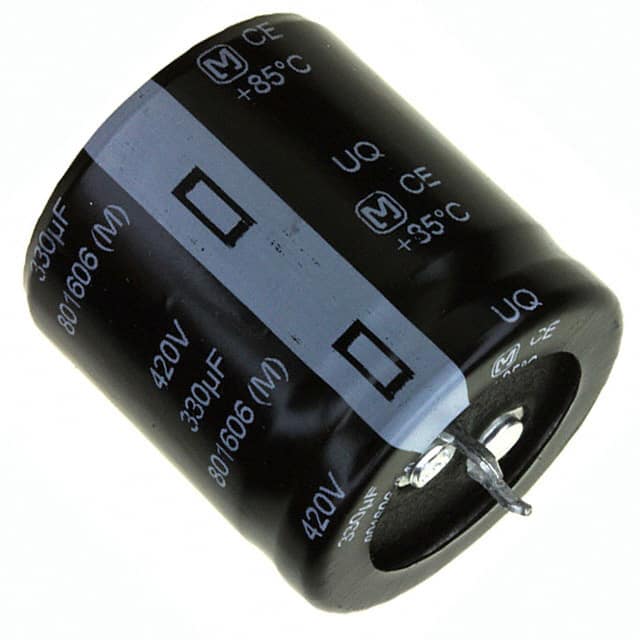

EET-UQ2S331KFCAP ALUM 330UF 20% 420V SNAP TH |
3,676 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-UQ2S391JACAP ALUM 390UF 20% 420V SNAP TH |
4,180 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

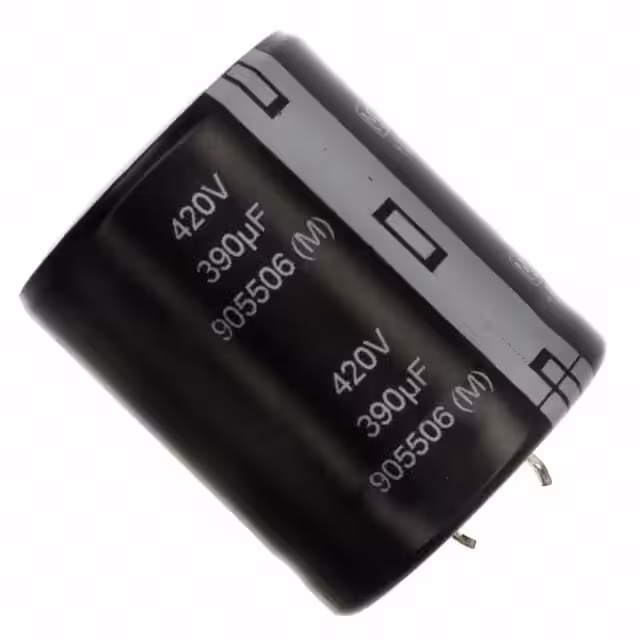

EET-UQ2S391KACAP ALUM 390UF 20% 420V SNAP TH |
4,871 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-UQ2S391LACAP ALUM 390UF 20% 420V SNAP TH |
2,817 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-UQ2S471KFCAP ALUM 470UF 20% 420V SNAP TH |
2,471 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.61 A @ 120 Hz | 3.654 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-UQ2S471LACAP ALUM 470UF 20% 420V SNAP TH |
2,906 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.61 A @ 120 Hz | 3.654 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

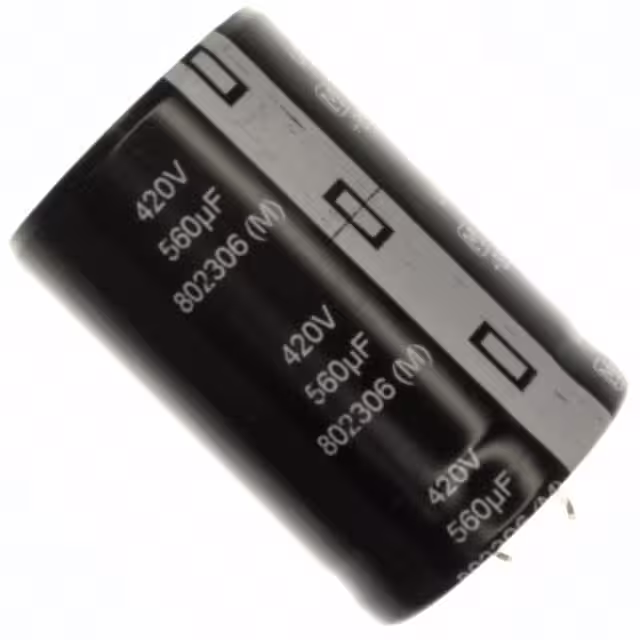

EET-UQ2S561KFCAP ALUM 560UF 20% 420V SNAP TH |
2,118 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 3.948 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
EET-UQ2S561LACAP ALUM 560UF 20% 420V SNAP TH |
4,872 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 3.948 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EET-UQ2S681KFCAP ALUM 680UF 20% 420V SNAP TH |
1,007 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 680 µF | ±20% | 420 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 4.354 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole |
